| Item | Standard Specification |
|---|---|
| Vehicle Classification | Midsize Family Urban SUV, 5-door, optional 5-seat / 2+3+2 7-seat high rigidity load-bearing cage body |
| Overall Size (L*W*H, mm) | 4749 * 1900 * 1720 |
| Wheelbase (mm) | 2745 |
| Min Ground Clearance (Unladen) | 160mm |
| Approach Angle / Departure Angle | 18° / 21° |
| Max Wading Depth (mm) | 500 |
| Tire Specification | 235/60 R18 standard alloy wheels, optional 255/45 R20 sport rims |
| Curb Weight Range (kg) | 1540 (Petrol 5-seat) / 1610 (Petrol 7-seat) / 1800 (C-DM PHEV) |
| Fuel Tank Capacity (L) | 57 |
| Standard Trunk Volume (5-seat / 7-seat) | 890L / 193L |
| Rear seats fully folded cargo volume | 1490L flat loading platform |
| Body torsional stiffness | 27800 N·m/deg, 76% high-strength steel coverage |
| Exterior standard configuration | LED integrated headlights, rear roof spoiler, panoramic sunroof, roof luggage rack |
| Item | 6MT Manual Version | 6DCT Wet Dual Clutch Version |
|---|---|---|
| Engine Model | E4T15C 1.5T four-cylinder turbocharged petrol engine | |
| Max engine power / torque | 115kW (156 PS) / 230 N·m (1750-4000rpm) | |
| Transmission type | 6-speed manual transmission | 6-speed wet dual clutch transmission |
| Driving layout | Front-wheel drive FWD | |
| Driving modes | Eco, Standard, Sport three driving modes | |
| Max vehicle speed (km/h) | 185 | |
| WLTC comprehensive fuel consumption (L/100km) | 7.4 | 7.8 |
| Item | Parameter Details |
|---|---|
| Hybrid system architecture | Chery 5th Gen Kunpeng C-DM super hybrid system, 2-speed special DHT hybrid gearbox |
| Hybrid dedicated engine | 1.5TGDI Miller cycle turbo petrol engine, thermal efficiency up to 44.5% |
| Engine max power / torque | 115kW / 230 N·m |
| Permanent magnet drive motor output | 84kW peak power / 160 N·m peak torque |
| System combined peak power / torque | 199kW (271 PS) / 395 N·m |
| 0-100km/h acceleration time | 7.0s |
| Battery type & capacity | Gotion High-tech NMC nickel manganese cobalt lithium battery, 19.43kWh |
| CLTC pure electric range (km) | 85 / 110 two range options |
| Full fuel + EV total comprehensive range (km) | Up to 1200 |
| WLTC low battery fuel consumption (L/100km) | 5.18 |
| Max vehicle speed (km/h) | 180 |
| Working modes | Pure EV, series hybrid, parallel hybrid, engine direct drive four working modes |
| Item | Full Configuration Parameters |
|---|---|
| Battery protection grade | IP68 waterproof and dustproof integral battery pack |
| High voltage architecture | 400V high voltage platform |
| Max DC fast charging power | 41kW peak DC fast charging |
| DC fast charging time (30% - 80% SOC) | 18 Minutes |
| AC slow full charging completion time | 6 Hours |
| V2L external camping discharge function | 6.6kW 220V outdoor household power output socket |
| Battery thermal management system | Full liquid cooling & heating circulation, low-temperature battery preheating, multi-layer overcharge/over-discharge/short-circuit safety protection |
| Adjustable energy recovery levels | 3 regeneration modes: Low / Standard / High |
| Global three-electric system warranty | 8 Years / 150,000km international official warranty |
| Item | Detailed Hardware Configuration |
|---|---|
| Front suspension | MacPherson independent suspension with optimized shock absorber travel |
| Rear suspension | Multi-link independent suspension system |
| Brake system | Front ventilated disc + rear solid disc brakes, EPB electronic parking brake with Auto Hold function |
| Steering mechanism | Rack & pinion electric power steering EPS with variable damping adjustment |
| Vehicle stability control | Full-range ESC electronic stability program, TCS anti-slip traction control, ABS+EBD brake force distribution |
| Auxiliary climbing functions | HAC hill start assist, HDC hill descent control |
| Chassis underbody protection | Lightweight plastic engine lower guard plate as standard |
| Category | Complete Specifications |
|---|---|

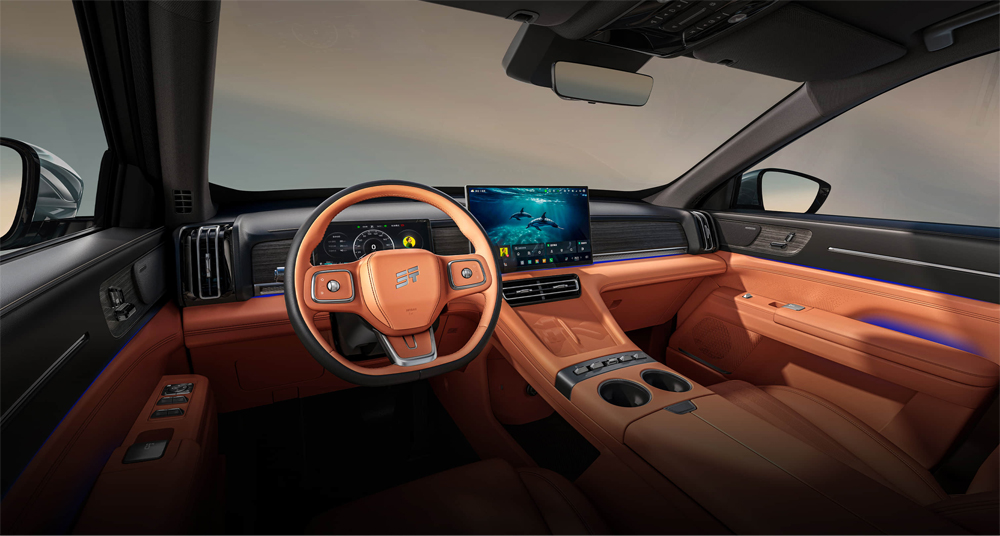

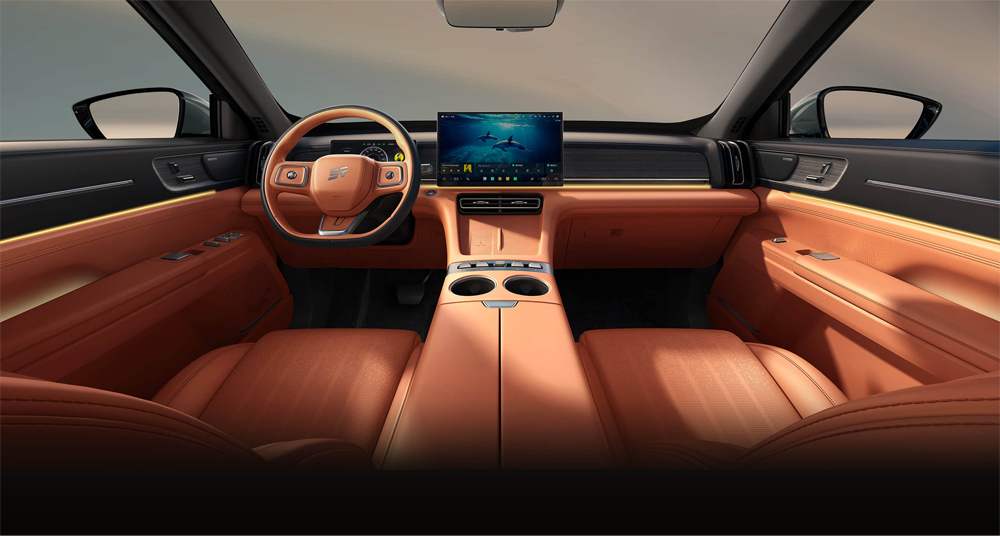

| Dual screen combination | 12.3-inch full LCD instrument cluster + 10.25-inch floating central touch control screen |
| On-board intelligent operating system | TOUR OS vehicle intelligent system, Qualcomm high-performance chip, full FOTA remote OTA upgrade, 4G network connection |
| Wireless mobile interconnection | Wireless Apple CarPlay, Wireless Android Auto, Huawei HiCar smart connection |
| Seat material & multi-functions (mid & high trim) | Soft imitation leather seats; front seat heating, 8-way electric adjustment & memory function; multifunctional leather steering wheel |
| Air conditioning system | Dual-zone automatic air conditioner, independent rear air outlets, PM2.5 air purification filter |
| Luxury convenient configurations | Panoramic electric sunroof, power liftgate, 50W wireless fast charging pad, multi-color ambient light, front double soundproof laminated glass, rain-sensing wipers |

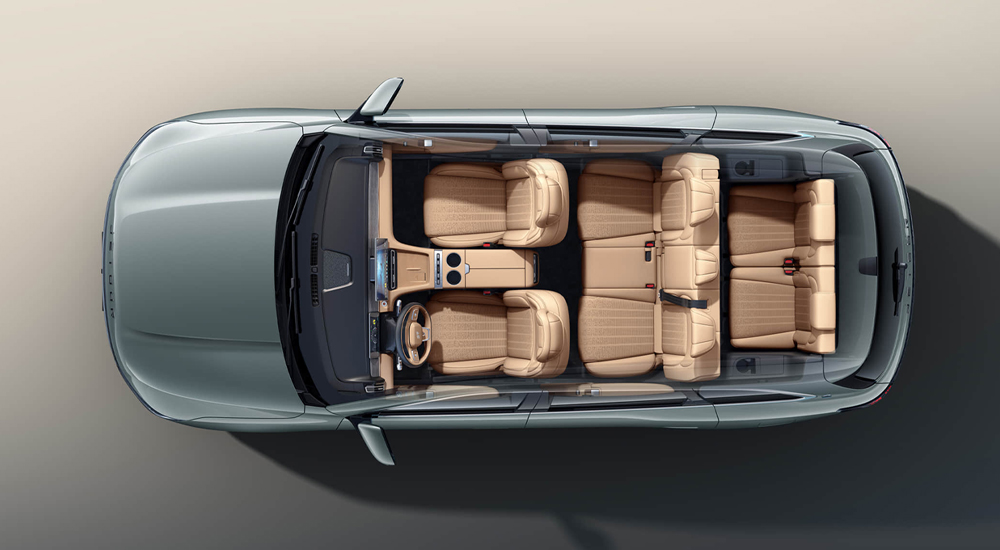

| 7-seat exclusive interior | Second row sliding & backrest adjustable, foldable hidden third row seats, extra rear USB-C charging ports |
| Item | Full Safety Configuration List |
|---|---|
| Body safety structure | High-rigidity integrated cage body, 76% high-strength steel, 1500MPa ultra-high tensile steel applied to crash key areas |
| Passive airbag protection | 6 SRS airbags (driver & co-pilot front airbags, side airbags, full-length curtain airbags covering all rows) |
| ADAS sensing hardware (L2 level) | Millimeter-wave radar + surround HD cameras + full-circle ultrasonic radars, 540° HD transparent chassis panoramic camera |
| Core active safety functions | Full-speed ACC adaptive cruise control, LCC lane centering control, long-range AEB automatic emergency braking, BSD blind spot monitoring, DOW door opening warning, driver fatigue reminder, forward collision warning FCW |
| Intelligent parking system | APA automatic parking, RPA remote control parking assist |
| Auxiliary safety equipment | Real-time TPMS tire pressure monitoring system, anti-glare auto dimming rearview mirror, ISO FIX child seat fixing interface, E-Call emergency rescue call function |
