| Item | Standard Specification |
|---|---|
| Vehicle Classification | Mid-size Square Light Off-Road SUV, 5-door 5-seat High Rigidity Load-Bearing Cage Body |
| Overall Size (L*W*H, mm) | 4795 * 2006 * 1880 (With rear spare tire cover) |
| Wheelbase (mm) | 2800 |
| Min Ground Clearance (Unladen) | 220mm |
| Approach Angle / Departure Angle | 28° / 30° |
| Max Wading Depth (mm) | 700 |
| Tire Standard | 255/60 R19 Alloy Wheels, Optional All-Terrain AT Tires |
| Curb Weight Range (kg) | 1700 - 2300 |
| Fuel Tank Capacity (L) | 70 |
| Standard Trunk Volume / Rear Seats Fully Folded | 480L / 1494L Flat Cargo Platform |
| Max Braked Towing Capacity (kg) | 1600 |
| Exclusive Off-Road Function | Tank Turn for Ultra Small Turning Radius, Min Radius 4.785m |
| Body Torsional Stiffness | 32000 N·m/deg, Over 80% High-Strength Steel Usage Ratio |

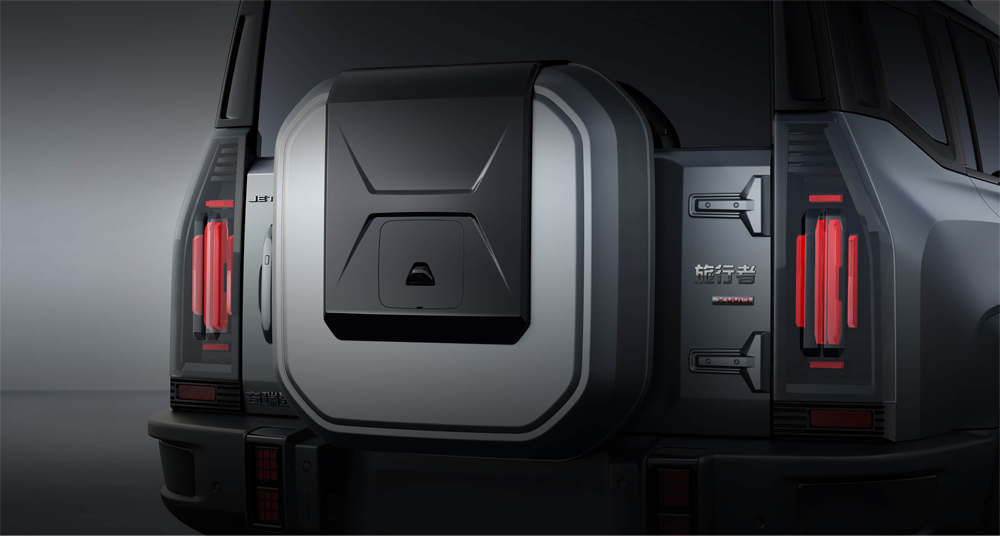

| Standard Off-Road Exterior Parts | Rear Mounted Full-Size Spare Tire, Heavy-Duty Front Tow Hooks, Reinforced Roof Rack (100kg dynamic / 300kg static load) |
| Item | 1.5TD FWD 7DCT | 2.0TGDI XWD Intelligent 4WD 8AT |
|---|---|---|
| Engine Model | 1.5T Turbo 4-Cylinder Petrol Engine | Kunpeng 2.0TGDI Turbo Direct Injection 4-Cylinder Petrol Engine |
| Max Engine Power / Torque | 135kW (184 PS) / 290 N·m | 187kW (254 PS) / 390 N·m |
| Transmission Gearbox | 7-Speed Wet Dual Clutch 7DCT | 8-Speed Automatic Transmission 8AT |
| 4WD System | N/A | BorgWarner 6th Gen XWD On-Demand Intelligent Four-Wheel Drive |
| Differential Lock (4WD Only) | N/A | Electronic Embedded Mechanical Rear Differential Lock, 100% Torque Transfer to Single Wheel |
| Multi-Terrain Driving Modes | Eco, Standard, Sport | Eco, Standard, Sport, Snow, Mud, Sand, Rock, X Auto Off-Road Mode (7+X Scenes) |
| 0-100km/h Acceleration Time | 9.5s | 8.0s |
| Max Vehicle Speed (km/h) | 180 | |
| WLTC Comprehensive Fuel Consumption (L/100km) | 8.35 | 8.83 |
| Item | Dual-Motor FWD PHEV | Three-Motor XWD Intelligent AWD PHEV |
|---|---|---|
| Hybrid Platform | Chery 5th Gen Kunpeng Super C-DM Hybrid System, 3-Speed Special DHT Hybrid Gearbox | |
| Hybrid Exclusive Engine | 1.5TD Miller Cycle Turbo Petrol Engine, 115kW / 220 N·m | |
| Motor Layout | P1+P2 Front Dual Motors | P1+P2+P4 Front & Rear Three Motors |
| System Combined Peak Power / Torque | 280kW (380 PS) / 610 N·m | 455kW (620 PS) / 920 N·m |
| 0-100km/h Acceleration Time | 6.8s | 4.9s |
| Battery Capacity Options | 27.2kWh / 43.24kWh CATL LFP Lithium Iron Phosphate Battery | |
| CLTC Pure Electric Range (Small / Large Battery) | 129km / 212km | 125km / 206km |
| Full Fuel + EV Total Comprehensive Range | Over 1300km | |
| WLTC Low Battery Fuel Consumption (L/100km) | 5.86 | 6.53 |
| Max Vehicle Speed (km/h) | 180 | 190 |
| Exclusive XWD Off-Road Hardware | N/A | 0.15s Ultra-Fast Front & Rear Torque Distribution, Standard Electronic Rear Differential Lock |
| Item | Full Configuration Parameters |
|---|---|
| Battery Material & Supplier | CATL LFP Lithium Iron Phosphate Battery, IP68 Waterproof & Dustproof Grade |
| High Voltage Architecture | 400V High Voltage Platform |
| Max DC Fast Charging Power | 60kW Peak DC Fast Charge |
| Fast Charging Time (30% - 80% SOC) | 30 Minutes |
| AC Slow Full Charging Time | 6 Hours |
| V2L External Camping Discharge Function | 6.6kW Main Trunk 220V Outlet + 2.2kW Interior Auxiliary Power Socket |
| Battery Thermal Management System | Full Liquid Cooling & Heating, Low-Temperature Preheating, Multi-Layer Overcharge / Short Circuit Safety Protection |
| Adjustable Energy Recovery Modes | 3 Regeneration Levels: Low / Standard / High |
| Underbody Battery Protection | 7-Piece Reinforced Steel Chassis Guard Plates |
| Global Official Battery Warranty | 8 Years / 160,000km International Three-Electric System Warranty |
| Item | Detailed Hardware Configuration |
|---|---|
| Front Suspension | MacPherson Independent Suspension, Optimized Shock Absorber Travel for Off-Road |
| Rear Suspension | Five-Link Independent Suspension System |
| Differential Lock (XWD 4WD / C-DM AWD) | Electronic Mechanical Rear Differential Lock, Full Torque Lock for Single Wheel Escape |
| Core Off-Road Auxiliary Functions | HDC Hill Descent Control, HAC Hill Start Assist, Full-Range ESP Stability Control, Anti-Slip Traction Control |
| Brake System | Front Ventilated Large Disc + Rear Solid Disc Brakes, EPB Electronic Parking Brake with Auto Hold |
| Steering Mechanism | Rack & Pinion Electric Power Steering with Multi-Stage Damping Adjustment |
| Chassis Protection | Thickened Metal Engine & Transmission Guard Plates (Standard on Off-Road Trims) |
| Category | Complete Specifications |
|---|---|

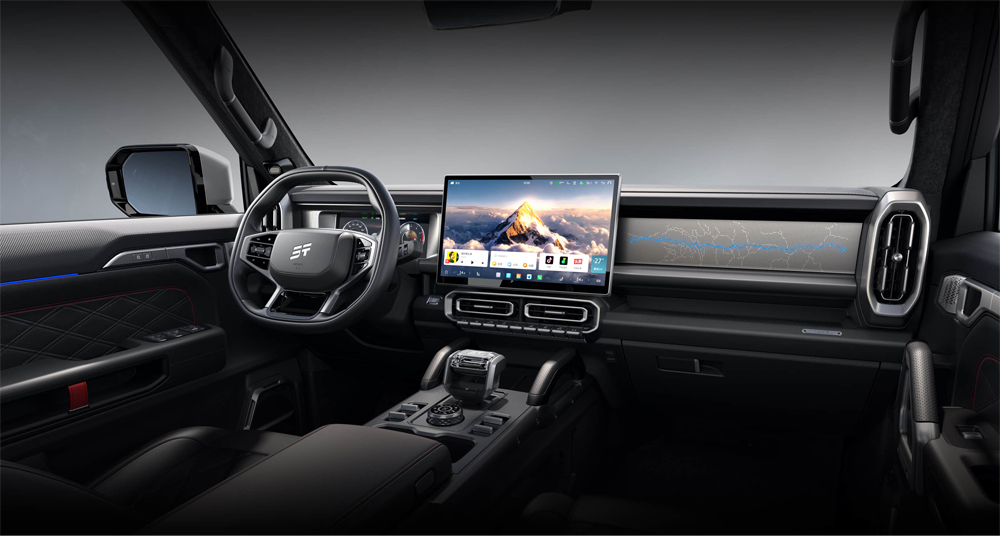

| Dual Screen Combination | 10.25-inch Full LCD Instrument Cluster + 15.6-inch 2.5K Floating Central Touch Screen, Physical Hard Buttons Reserved for Drive Mode & Air Conditioner |
| On-Board Intelligent System | TOUR OS 2.0 Vehicle System, Qualcomm 8155 (Petrol) / 8255 (C-DM) Chip, Full FOTA Remote OTA Upgrade, 5G Network Connection |
| Wireless Mobile Interconnection | Wireless Apple CarPlay, Wireless Android Auto, Huawei HiCar |

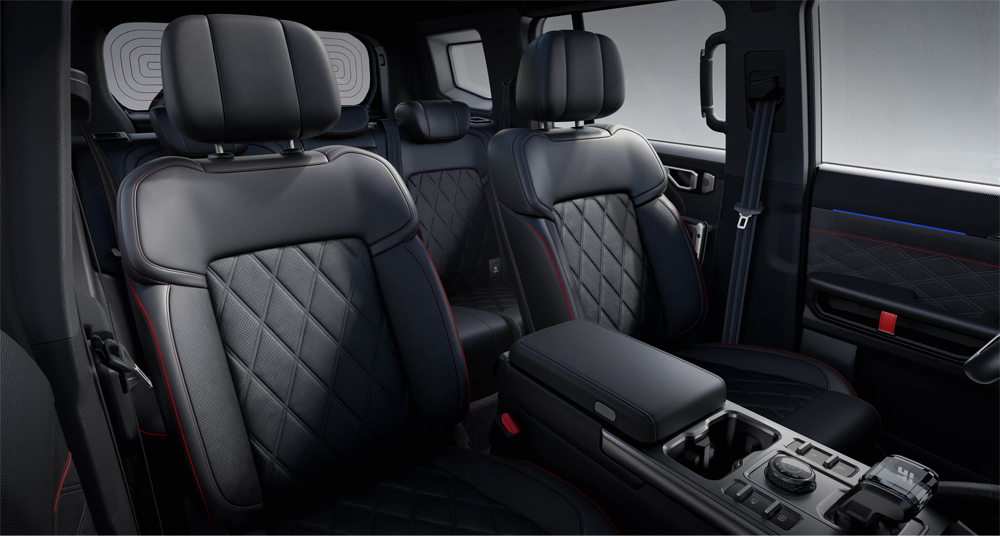

| Seat Material & Multi-Functions (Mid & High Trim) | Soft Nappa Imitation Leather / Suede Upholstery; Front Seats Heating, Ventilation, Massage & 12-Way Electric Memory; Heated Multifunction Steering Wheel; Co-Pilot Queen Seat with Retractable Leg Support |
| On-Board Refrigerator (High Trim Exclusive) | 6.4L Cold & Warm Dual Temperature Compressor Fridge, Adjustable Range -6℃ ~ 50℃ |
| Premium Audio System | SONY Hi-Fi Surround Sound Audio with Independent Subwoofer & Multiple Surround Speakers |
| Air Conditioning System | Dual-Zone Automatic Heat Pump Air Conditioner, Independent Rear Air Outlet, PM2.5 Air Purification & Negative Ion Generator, AQS Air Quality Monitor |
| Luxury Convenience Features | 64-inch Panoramic Electric Sunroof, Electric Suction Tailgate, 50W Wireless Fast Charging Pad, 64-Color Dynamic Rhythm Ambient Light, Front Double Soundproof Laminated Glass, Rear Privacy Insulated Glass, Rain-Sensing Wipers, Built-In Vehicle Fragrance System, Second Row Foldable Tray Tables |
| Item | Full Configuration Safety List |
|---|---|
| Body Safety Structure | High-Rigidity Integrated Cage Body, 80%+ High-Strength Steel, 1500MPa Ultra-High Tensile Roll Protection Steel on Crash Key Zones |
| Passive Airbag Protection | 6 SRS Airbags (Front Driver & Co-Pilot Airbags, Side Airbags, Full-Length Curtain Airbags Cover All Seats) |
| ADAS Hardware Tier | Standard Trim: Falcon 500 L2.5 ADAS; Ultra High Trim: Huawei Qiankun ADS 4.0 Full-Scene Intelligent Driving System |
| Perception Sensors (ADS 4.0 Version) | High-Precision LiDAR + Multiple Millimeter-Wave Radars + Surround HD Cameras + Full-Circle Ultrasonic Radars |
| Core Active Safety Functions | Full-Speed ACC Adaptive Cruise, LCC Lane Centering Control, Long-Range AEB Automatic Emergency Braking, BSD Blind Spot Detection, RCTA Rear Cross Traffic Alert, DOW Door Opening Warning, DMS Driver Fatigue Monitoring, 540° HD Transparent Chassis Panoramic Camera |
| Intelligent Parking System | APA Automatic Parking, RPA Remote Control Parking, HPA Cross-Layer Memory Parking Assist, Reverse Track Assist |
| Auxiliary Safety Equipments | Real-Time TPMS Tire Pressure Monitoring, Anti-Glare Auto Dimming Rearview Mirror, ISO FIX Child Seat Fixing Interface, E-Call Emergency Rescue Call Function |
