| Item | Specification |
|---|---|
| Vehicle Class | Mid-size Hardcore PHEV Off-road SUV |
| Body Structure | 5-door 5-seat Ladder Frame Non-load-bearing Body |
| Overall Size (L*W*H, mm) | 4890 * 1970 * 1920 |
| Wheelbase (mm) | 2800 |
| Front / Rear Track (mm) | 1660 / 1660 |
| Approach Angle / Departure Angle | 39° / 34°-35° |
| Max Wading Depth (mm) | 790 |
| Max Climbing Gradient | 100% |
| Tire Standard | 265/65 R18 Alloy Wheel + Full-size Spare Tire (Rear-mounted) |
| Curb Weight (kg) | 2960 - 3040 |
| Fuel Tank Capacity (L) | 83 |
| Luggage Volume (L, Standard) | 1069 (40:60 Split Folding Rear Seats) |
| Min Turning Radius | 3.4m (Leopard Tank Turn Function) |
| Item | Parameter |
|---|---|
| Hybrid Platform | DMO Dual-Mode Off-road Super Hybrid Platform |
| Engine Model | 1.5T Turbocharged 4-cylinder Petrol Engine |
| Front Motor Layout & Output | Permanent Magnet Synchronous Motor, 200kW / 360N·m |
| Rear Motor Layout & Output | Permanent Magnet Synchronous Motor, 285kW / 400N·m |
| System Comprehensive Peak Power | 505kW (687 PS) |
| System Comprehensive Peak Torque | 760 N·m |
| 0-100km/h Acceleration Time | 4.8s |
| Max Speed (km/h) | 180 |
| CLTC Pure Electric Range (km) | 210 |
| WLTC Pure Electric Range (km) | 160 |
| Full Fuel + Full EV Comprehensive Range (km) | 1310 |
| Transmission | 2-speed DHT Special Off-road Gearbox |
| Drive Form | Standard Dual-motor Intelligent Electric 4WD |
| Item | Configuration |
|---|---|
| Battery Type | BYD Second Generation Blade LFP Battery, CTC 2.0 Chassis Integrated Technology |
| Battery Capacity (kWh) | 47.8 |
| Max DC Fast Charging Power | 150kW |
| Fast Charging Time (30%-80%) | 15 mins |
| Ultra Fast Charge (10%-70%) | 10 mins (Yunlian Flash Charge Version) |
| AC Slow Charging Time | 7.3 hours |
| External Discharge Power | 6kW Vehicle-to-Load Outdoor Power Supply |
| Battery Safety Standard | IP68 Waterproof, Passed Puncture, Extrusion, Low-temperature Extreme Safety Test |
| Item | Details |
|---|---|
| Front Suspension | Double Wishbone Independent Suspension |
| Rear Suspension | Five-link Independent Suspension |
| Optional Chassis System | Yunlian-P Intelligent Hydraulic Body Control System (High Trim Exclusive) |
| Suspension Adjustable Stroke | 140mm (Yunlian-P Version), Max Ground Clearance 310mm |
| Differential Lock System | Standard Central Electronic Lock + Rear Electronic Lock; Optional Front Electronic Lock (3 Locks Full Set) |
| Off-road Driving Modes | Crawl Mode, Tank Turn, Sand, Mud, Rock, Snow, Sport, Eco, Custom 16 Multi-terrain Modes |
| Brake System | Front Ventilated Disc + Rear Solid Disc Brake, Electronic EPB Auto Hold |
| Steering System | Electric Power Steering with Multi-stage Damping Adjustment |
| Category | Specifications |
|---|---|

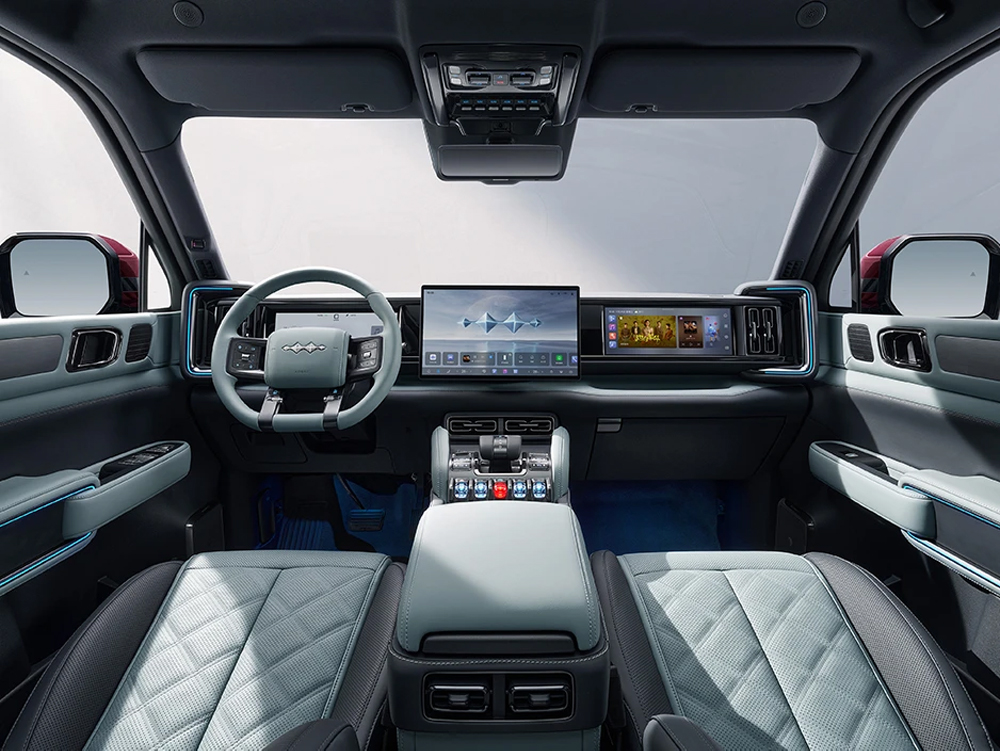

| Screen Combination | 12.3" LCD Instrument + 15.6" Rotatable Central Touch Screen + 12.3" Co-pilot Entertainment Screen + Optional 50" AR-HUD |
| Vehicle System | DiLink Intelligent Vehicle OS, Support OTA Remote Upgrade |
| Seat Configuration | Nappa Leather Seats; Front Seats Heating / Ventilation / Massage / Memory; Heated Steering Wheel |
| Audio System | Standard Devialet Premium Audio, 18 Speakers High Trim with Headrest Speakers |
| Air Conditioning | Dual Zone Automatic Heat Pump AC, PM2.5 Purification, Negative Ion Generator |
| Convenient Functions | Panoramic Sunroof, Power Side Steps, Electric Suction Tailgate, UWB Digital Key, Streaming Rearview Mirror, Rhythmic Ambient Light, Vehicle Fragrance System |
| Item | Configuration List |
|---|---|
| Passive Safety | 11 Airbags, High-rigidity Ladder Frame, 100% High-strength Steel Frame, Roll-over Protection System |
| Core ADAS Level | L2+ Level Intelligent Driving Assistance System |
| Active Safety Functions | ACC Adaptive Cruise Control, LCC Lane Centering, AEB Automatic Emergency Braking, LDWS Lane Departure Warning, BSD Blind Spot Detection, Front & Rear Collision Warning, 360° Panoramic HD Camera, Automatic Parking Assist |
| Optional High-end ADAS | Kunlun High-computing Intelligent Driving System, Urban NOA Navigation Assist Driving, Road Pre-scanning for Yunlian-P Suspension |
| Other Safety Equipments | Rain-sensing Wipers, Facial Recognition Driver Monitoring, High-speed Tire Burst Stabilization System, Rear Privacy Double Soundproof Glass |
