ZEEKR 8X

ZEEKR 8X Full Official Technical Configuration Specifications

Original factory complete parameters for ZEEKR 8X mid-large luxury 5-door family plug-in hybrid SUV, built on advanced SEA-S native 900V ultra-high voltage super hybrid architecture, equipped with high thermal efficiency 2.0T Atkinson cycle hybrid engine (46%+ thermal efficiency). Two ternary lithium 6C fast-charging battery options: 55.04kWh and 70.02kWh, supporting ultra-fast charging (20%-80% SOC within 9 minutes). Three power versions: dual-motor AWD standard range, dual-motor AWD long range, and Dawn triple-motor high-performance flagship. Max total system power reaches 1030kW, official 0-100km/h acceleration as low as 2.96 seconds. All models standard closed dual-chamber air suspension + dual-valve CCD electromagnetic shock absorbers, optional 48V active anti-roll bar intelligent digital chassis. Two autonomous driving packages: Qianli Haohan H7 and top-tier H9, powered by NVIDIA Thor-U high-computing chip with LiDAR sensing hardware. Optional 5-seat standard layout or independent 2+2+2 six-seat luxury layout, dual 16-inch ultra-wide floating cockpit screens and premium surround audio system. All technical data is fully prepared for global overseas mid-large luxury plug-in hybrid family SUV wholesale and export business by Sasa Trading Co., Ltd.

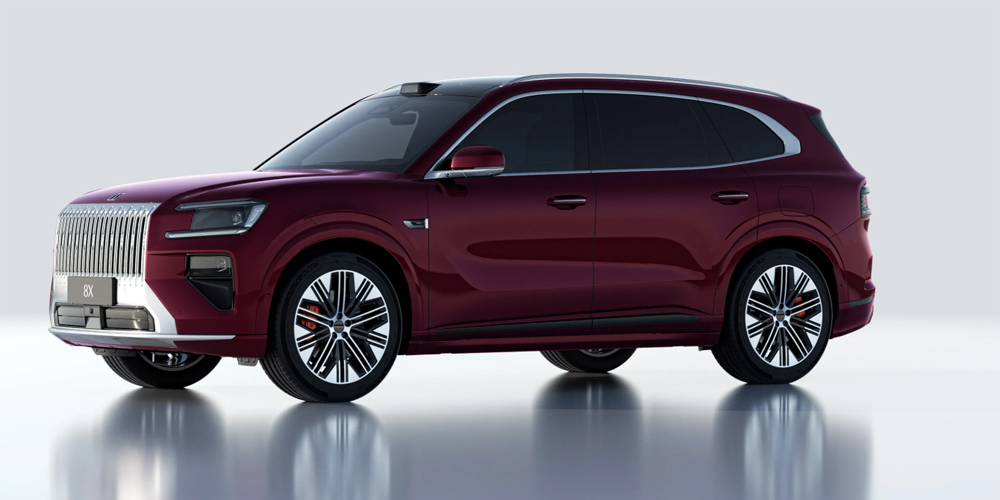

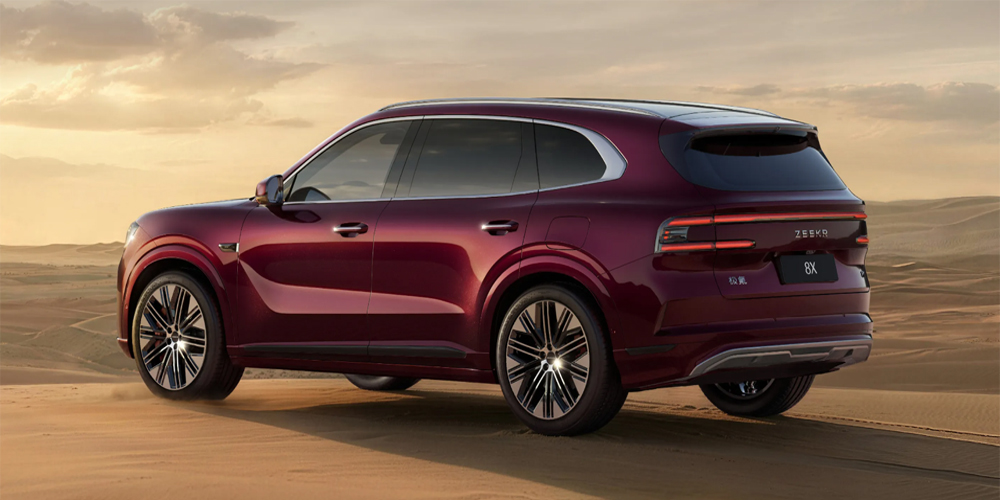

1. Exterior Body & Overall Dimension Parameters

Specification Item	Standard Dual-Motor Version Dimension	Dawn Triple-Motor Wide-body Version Dimension
Vehicle Classification	Mid-large Luxury Plug-in Hybrid 5-door SUV, optional 5/6 seat layout	Mid-large Wide-body High-performance PHEV SUV, optional 5/6 seat layout

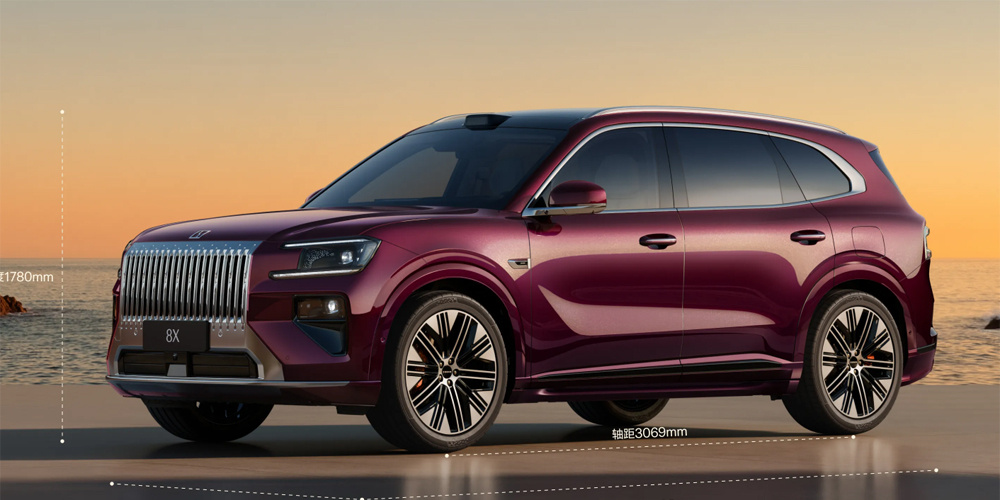

Overall Length × Width × Height	5100 mm × 1998 mm × 1780 mm	5108 mm × 2026 mm × 1780 mm
Wheelbase	3069 mm Ultra-spacious multi-row passenger wheelbase	3069 mm Ultra-spacious multi-row passenger wheelbase
Front Track / Rear Track	1712 mm / 1728 mm	1735 mm / 1752 mm Wide performance track
Curb Weight Range	2760 kg (55kWh) / 2850 kg (70kWh dual motor)	3020 kg Triple-motor Dawn flagship curb weight
Rear Trunk Luggage Volume	1133 L (seats upright) / 2200 L (all rear seats fully folded flat)	1133 L (seats upright) / 2200 L (all rear seats fully folded flat)
Minimum Turning Radius	5.9 m Balanced large-body maneuver performance	6.0 m Wide-body optimized steering calibration
Maximum Electronically Limited Top Speed	230 km/h Dual-motor models	230 km/h Triple-motor Dawn flagship
Standard Wheel & Tire Size (Dual-motor)	21-inch multi-spoke alloy wheels, 265/45 R21 silent comfort tires	22-inch two-tone forged performance wheels, 275/40 R22 low rolling resistance tires
Air Suspension Adjustable Ground Clearance Range	150 mm - 241 mm multi-mode height adjustment	150 mm - 241 mm multi-mode height adjustment

2. Plug-in Hybrid Powertrain & Dynamic Performance Specifications

Performance Item	Dual-Motor 55kWh Standard Range Version	Dual-Motor 70kWh Long Range Version	Dawn Triple-Motor 70kWh Ultra Performance Flagship
Drive Layout	Front + rear dual permanent magnet motor all-wheel drive (AWD)	Front + rear dual permanent magnet motor all-wheel drive (AWD)	Front asynchronous motor + dual rear permanent magnet triple-motor all-wheel drive (AWD)
Hybrid Engine Parameter	2.0T Atkinson cycle high-efficiency hybrid engine, max power 205kW / 279Ps, thermal efficiency 46%+	2.0T Atkinson cycle high-efficiency hybrid engine, max power 205kW / 279Ps, thermal efficiency 46%+	2.0T Atkinson cycle high-efficiency hybrid engine, max power 205kW / 279Ps, thermal efficiency 46%+
System Total Peak Power & Torque	Combined total power: 660kW / total torque: 1280 N·m	Combined total power: 660kW / total torque: 1280 N·m	Combined total power: 1030kW / total torque: 1800 N·m
Transmission Type	SEA-S super hybrid intelligent DHT transmission	Upgraded SEA-S super hybrid intelligent DHT transmission	Dawn exclusive triple-motor high-performance DHT drive system
Battery Type & Capacity	6C ultra-fast charging ternary lithium battery, 55.04kWh	High-density 6C ternary lithium battery, 70.02kWh	Top-tier high-energy 6C flash charging ternary lithium battery, 70.02kWh
CLTC Pure Electric Comprehensive Range	380 km Standard pure EV range	410 km Long pure EV range	395 km Balanced performance pure EV range
Full Oil-Electric CLTC Comprehensive Range	1320 km Long comprehensive range	1416 km Ultra-long comprehensive range	1350 km Balanced performance comprehensive range
20%-80% SOC DC Ultra-fast Charging Time	Within 9 Minutes (support 900V high-voltage charging pile)	Within 9 Minutes (support 900V high-voltage charging pile)	Within 9 Minutes Dawn hyper flash charging architecture
11kW AC On-board Slow Charging Full Time (0-100%)	Approx. 8.2 Hours	Approx. 10.5 Hours	Approx. 10.5 Hours
Official WLTC Feed-in Fuel Consumption	5.1 L / 100km Ultra low feed-in fuel consumption	4.9 L / 100km Low feed-in fuel consumption	5.4 L / 100km Performance feed-in fuel consumption
Official 0-100km/h Acceleration Time	3.7 Seconds Daily luxury acceleration	3.7 Seconds Comfort fast acceleration	2.96 Seconds Flagship top performance acceleration
Fuel Tank Capacity	70 Liters, compatible with RON 92 regular gasoline	70 Liters, compatible with RON 92 regular gasoline	70 Liters, compatible with RON 92 regular gasoline
Full Chassis Suspension Standard Configuration	● Standard front double wishbone independent suspension + rear five-link independent suspension, closed dual-chamber air suspension + dual-valve CCD electromagnetic dampers, comfort tuning; optional 48V active anti-roll bar package	● Standard full independent suspension + air suspension + CCD dampers, optimized chassis calibration; optional 48V active anti-roll bar package	● Standard full independent suspension + air suspension + CCD dampers + exclusive 48V active anti-roll bar as standard, sport performance chassis calibration + iTAC intelligent torque control system
External V2L Vehicle To Load Discharge Function	● Standard 2.2kW outdoor mobile power V2L external power output function	● Standard 6.0kW high-power full function V2L camping power supply	● Standard 6.0kW industrial-grade V2L vehicle external power output
Driving Mode Presets	● EV / HEV / Eco / Normal / Sport / Individual Custom Mode	● EV / HEV / Eco / Normal / Sport / Snow / Individual Custom Mode	● EV / HEV / Eco / Normal / Sport Plus / Snow / Off-road / Performance Custom Mode

3. Exterior Standard Full Configuration (All Versions)

Exterior Feature Name	Full Range Standard Configuration Details

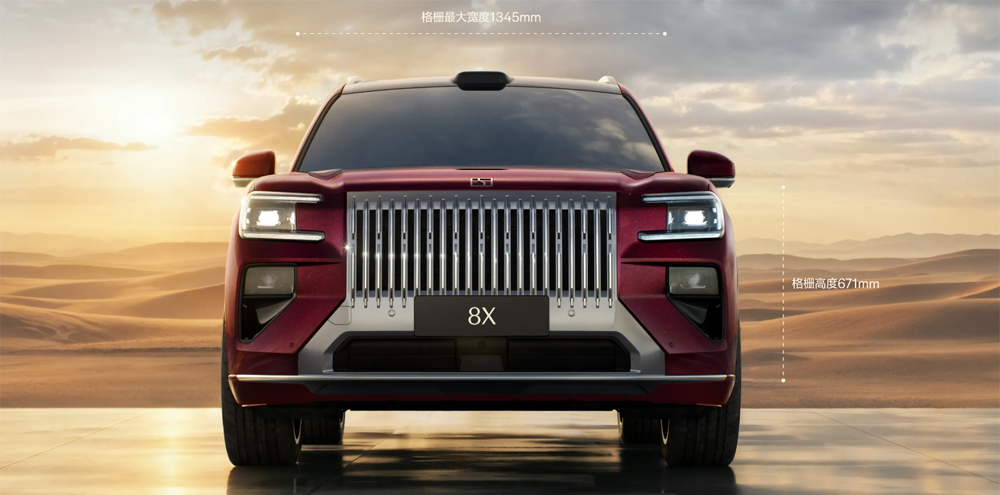

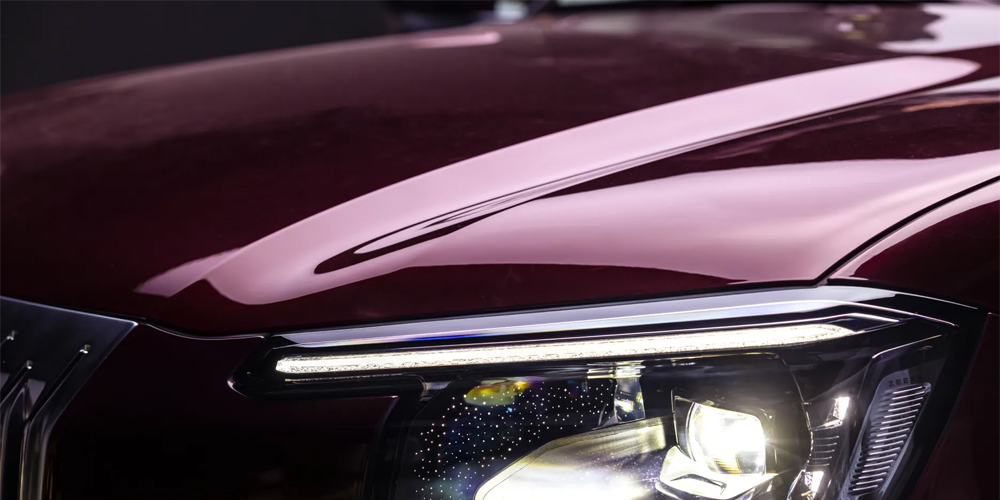

Front Lighting System	Full ZEEKR vertical waterfalls stream matrix LED headlight assembly, seamless closed EV aerodynamic front grille, split vertical C-shaped LED daytime running light strip, automatic light sensor activation, LED high mount third brake light, dual AGS intelligent active air intake grille
Side Rearview Mirrors	Body color large luxury rearview mirrors, electric adjustable & auto-folding mirrors, full heating defrost function, integrated LED dynamic sequential turn signal indicators, built-in 360° surround view camera modules, zero-gap flush door glass design

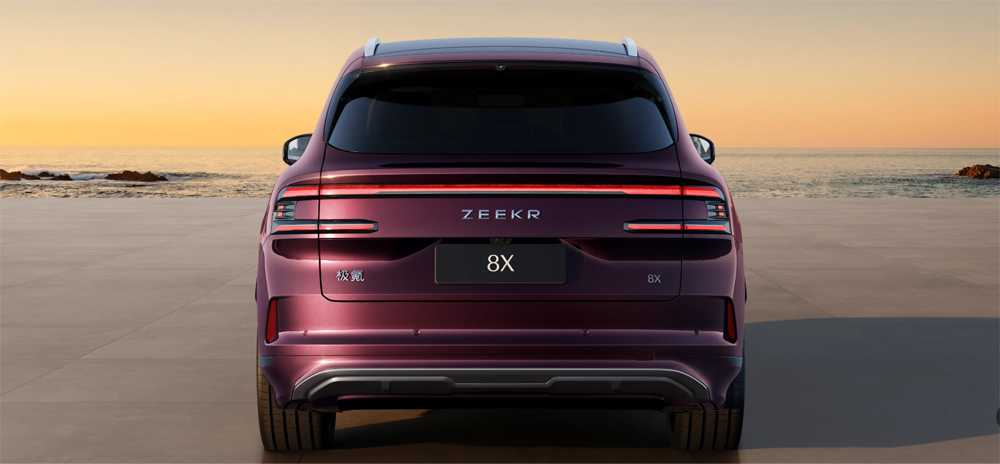

Rear Tailgate & Taillight Assembly	● Standard hands-free inductive electric power liftgate with anti-pinch & height memory, full LED coastline through-type combination taillights, sport aerodynamic rear diffuser bumper package, Dawn version exclusive red performance brake calipers
Window & Glass Functions	Double-layer acoustic heat insulated front windshield, deep privacy tinted rear side glass, full electric front & rear one-touch up/down window lifting, heated windshield washer nozzles
Premium Exterior Extra Equipment	Full galvanized anti-corrosion vehicle body, low wind resistance aerodynamic luxury SUV body, black plastic wheel arch protective trim, standard integrated silver roof side rails, multiple fashion metallic, matte & two-tone dual roof luxury body paint color options (Obsidian Black, Star Silver, Glacier White, Cloud Gray, Amethyst Purple)

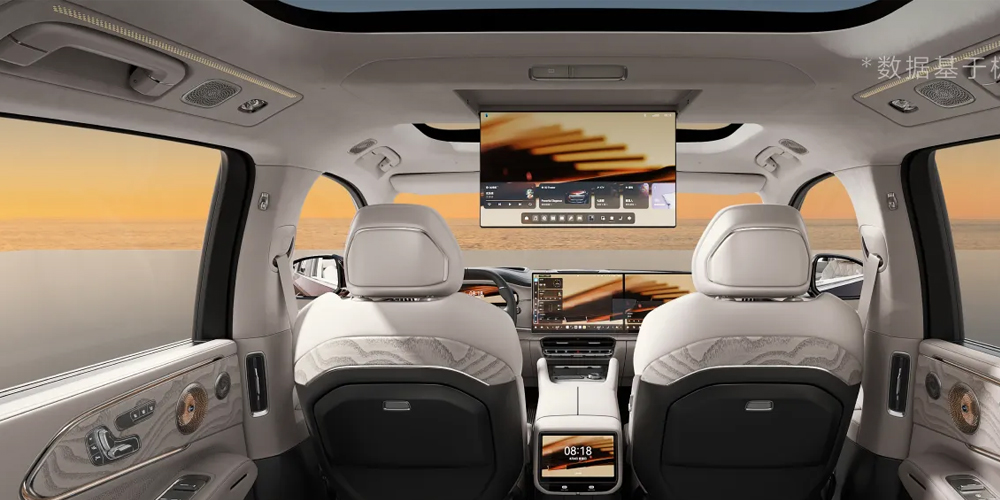

4. Interior Cabin & Comfort Configuration (5-seat standard / 2+2+2 six-seat optional)

Interior Item	Complete Configuration Description
Seat Upholstery Material	Base trim: wear-resistant soft fabric seats; mid & high trim: skin-friendly premium Nappa synthetic leather upholstery with diamond sport stitching decoration; Dawn flagship optional full top-tier aniline leather
Front Seat Adjustment	Base version: driver 6-way manual adjustment, passenger 4-way manual adjustment; mid & high version: driver 12-way full electric adjustment with lumbar support & 3-position memory function
Second Row Seat Layout	5-seat version: 60/40 split bench seat with multi-angle slide & backrest adjustment; six-seat optional: two independent captain chairs with separate armrest, built-in foldable business table
Third Row Seat Layout (Six-seat only)	Two independent split seats, foldable flat storage design, independent headrest for third row passengers
Seat Comfort Functions	Front seat heating standard on mid trims; front heating + ventilation + multi-mode massage standard on flagship Dawn high trims; six-seat version adds second row heating & ventilation
Air Conditioning System	● Standard four-zone independent intelligent wide-temperature heat pump air conditioning system, independent air outlets for front / second / third rows, PM2.5 high-efficiency cabin air purification filter with real-time cabin air quality monitoring sensor
Sunroof Configuration	○ Optional ultra-large panoramic electric sunroof with UV & heat insulation coating, starry sky light top optional for Dawn flagship
Steering Wheel Specification	D-shaped multi-function leather wrapped sport steering wheel, electronic column shift lever design, physical control buttons for audio media, cruise control & vehicle function quick switch

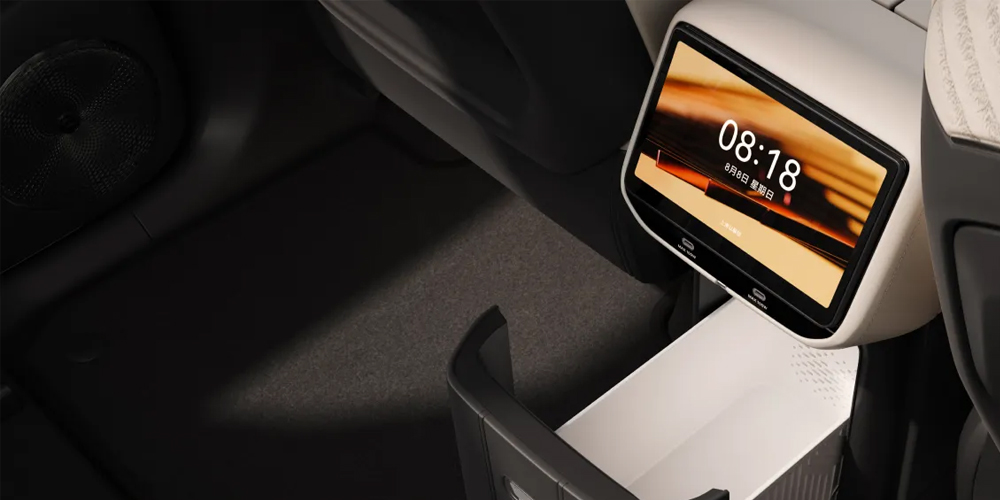

Cabin Exclusive Luxury Features (High/Dawn Trims)	Silent electric suction doors, rear independent refrigerated mini fridge, multi-color starlight ambient interior LED lighting, dual independent soft light makeup mirrors for driver & co-pilot
Cabin Convenience Core Features	Smart comfort access full vehicle NFC digital key & keyless entry, one-touch push start ignition, 50W wireless fast Qi phone charging pad, front & rear dual USB-C fast charging ports, front & rear cabin 12V power outlets, rear center armrest with dual built-in cup holders, over 35 built-in multi-scene storage compartments
Seat Folding Function	60/40 split-folding second row, 50/50 split-folding third row (six-seat), fully flat rear floor after folding, multi-angle adjustable rear seat backrest for expanded cargo loading capacity

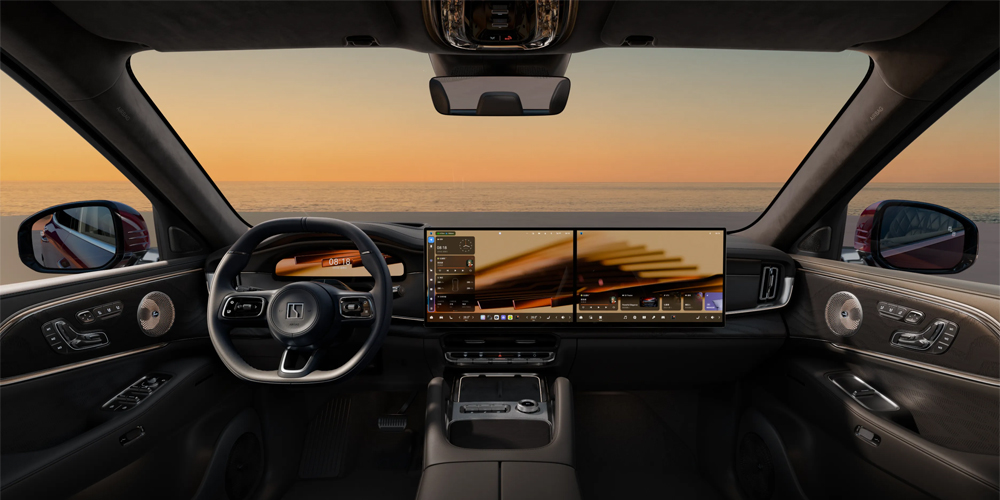

5. Intelligent Cockpit & Infotainment System (All Versions)

Intelligent Hardware Item	Official Technical Parameters
On-board Infotainment Chip	Dual Snapdragon 8295 high-performance cockpit computing chip
On-board Operating System	Latest Generation ZEEKR OS intelligent vehicle interactive operating system
Instrument Display	13.2-inch full LCD digital instrument cluster with real-time driving power, remaining range & safety data display
Central Control Cockpit Screen	Dual 16-inch ultra-wide floating high-definition connected touch screen, built-in global online & offline navigation system, ONE ID intelligent account synchronization
Head-up Display (HUD)	○ Optional 44-inch intelligent AR-HUD wide field head-up display for high & Dawn flagship trims
AI Intelligent Voice Assistant	Dual-zone independent intelligent voice recognition control, ultra-fast wake-up response speed, supports full voice control for air conditioner, multimedia audio, navigation and all basic vehicle adjustment functions
Mobile Phone Interconnection Compatibility	Full compatibility with wireless Apple CarPlay, wireless Android Auto, Bluetooth high-fidelity audio streaming & hands-free calling function, NFC digital vehicle key support
Audio Speaker System	Standard 8-speaker Hi-Fi sound system; mid & high trims standard 16-speaker premium surround audio; Dawn flagship optional 32-speaker Naim Dolby Atmos audio system
Smart Connected Vehicle Core Functions	Full-time 4G full-speed on-board network module, ZEEKR mobile app full remote vehicle status query & remote control, complete over-the-air OTA full vehicle system online upgrade function, built-in front HD full-view driving recorder camera

6. Qianli Haohan G-ASD L2++ Full-scenario Intelligent Driving Assistance Safety System

Safety Function Module	H7 Medium Package Function Intro	H9 Top Flagship Full Sensing Package Function Intro
Perception Hardware Configuration	Single high-precision LiDAR + three-eye HD front camera + long-range millimeter wave radar, total 27 sensing sensors, 6 front + 4 rear ultrasonic parking radars, 360° panoramic transparent chassis surround view camera system	5 sets of high-precision LiDAR + three-eye HD front camera + 5 long-range millimeter wave radars, total 43 full-dimensional sensing sensors, 6 front + 4 rear ultrasonic parking radars, 360° panoramic transparent chassis surround view camera system
Autonomous Driving Computing Chip	Single NVIDIA DRIVE Thor-U high-computing autonomous driving chip, 2000TOPS computing power	Dual NVIDIA DRIVE Thor-U flagship autonomous driving chips, total 4000TOPS ultra-high computing power
Full-speed Adaptive Cruise Control ACC	Full speed range 0-230km/h stop & go function, intelligent vehicle following for highway, urban congestion and ramp scenarios	Full speed range 0-230km/h stop & go function, enhanced all-weather intelligent vehicle following logic
Highway NCA Navigation Cruise Assist	Automatic lane change, ramp entry & exit, speed adjustment based on road limit speed, long-distance highway automatic driving assist	Enhanced highway NCA with multi-lane overtaking, mountain road curve adaptive speed control
Urban NCA City Navigation Driving Assist	Automatic traffic light passing, narrow road U-turn, pedestrian avoidance, complex urban road automatic driving function	Full-scenario urban NCA with multi-layer overpass, tunnel complex road automatic driving capability
Lane Safety Assistance Suite	Lane Departure Warning LDW, Active Lane Keeping Assist LKA, Road Edge Departure Protection Function, Emergency Lane Evasion Assist	Full lane safety suite + road obstacle active avoidance enhancement algorithm
Multi-scenario Automatic Emergency Braking AEB	Forward & reverse full-range active emergency braking system, accurate recognition of pedestrians, cyclists, motorcycles and static obstacles, forward collision early warning reminder	Full-scenario AEB with night low-light, rainy fog weather enhanced recognition capability
Blind Spot & Rear Traffic Safety	Blind Spot Monitoring BSM, Rear Cross Traffic Alert RCTA, Safe Door Exit Opening Warning Reminder Function, Rear Approaching Vehicle Early Warning System	Full blind spot safety suite + wide-range rear vehicle dynamic tracking algorithm
Intelligent Full-scenario Parking Assistant Suite	360° panoramic surround view monitor, dynamic real-time parking trajectory guidelines, AVP memory automatic valet parking, remote mobile app controlled narrow space parking assist function	Full AVP automatic parking, multi-story garage memory valet parking, ultra-narrow road automatic in/out parking
Traffic Sign Recognition	TSR traffic speed sign recognition & real-time vehicle speed reminder system	Multi-type traffic sign recognition, temporary road sign real-time capture function
Full Chassis Brake Stability Control (All Trims Standard)	Ventilated drilled front disc brakes / solid ventilated rear disc brakes, IPB intelligent brake system, ABS anti-lock braking system, EBD electronic brake force distribution, BA brake assist, ESP electronic stability program, real-time direct TPMS intelligent tire pressure monitoring system, electronic auto hold parking brake	Same full chassis brake stability control, Dawn flagship adds tire blowout stabilization TBC system

7. Passive Crash Safety Configuration (All Versions Standard)

Safety Configuration Item	Standard Safety Details
Complete Airbag Protection Layout	● Standard full 6-airbag premium protection system: front driver & passenger main airbags, front side airbags, full-length front & rear integrated curtain side airbags, driver knee protection airbag; six-seat version optional independent second row side airbags
Child Safety Protection System	Dual standard ISOFIX child seat mounting anchors on second row outer seats, rear child safety door locks, pre-tensioned load limiter 3-point safety belts equipped for all seating positions
Body Crash Safety Architecture	High-rigidity reinforced cage safety cabin, multi-horizontal & multi-longitudinal high tensile steel & 2000MPa hot-formed ultra-high strength steel applied on key impact zones, integrated high-strength battery protection frame, optimized front & rear progressive crumple energy absorption zones, reinforced side impact door anti-collision beams, fully compliant with global mainstream five-star crash safety certification standards
6C Ternary Lithium Battery Safety Protection	Fully sealed IP68 waterproof reinforced steel battery tray housing shell, complete intelligent liquid cooling thermal management system, passed strict pin piercing crash impact, deep water immersion, extrusion and thermal runaway anti-fire safety certification tests exceeding international industry standard requirements
Full Vehicle Anti-theft Security System	Advanced grade electronic drive motor immobilizer, full vehicle anti-theft alarm system with interior surveillance function, anti-towing protection lock, encrypted remote central locking system
Additional Passive Safety Design	Automatic emergency hazard light activation triggered during hard emergency braking, whiplash protection optimized front seat headrest structure, pedestrian-friendly energy-absorbing bonnet design, automatic high voltage power cut-off function activated immediately after collision impact
