Livan X3 PRO

Livan X3 PRO Full Official Technical Configuration Specifications

Original factory complete parameters for Livan X3 PRO compact 5-door 5-seater economical pure electric urban family SUV, built on dedicated electric vehicle architecture with front-mounted permanent magnet synchronous motor front-wheel drive layout, matched with safe lithium iron phosphate battery pack. It is equipped with practical L2-level intelligent driving assistance system, comfortable family interior configuration and complete daily convenience features. All technical data is prepared exclusively for global overseas cost-effective entry-level pure electric vehicle wholesale and export business.

1. Exterior Body & Overall Dimension Parameters

Specification Item	Official Standard Parameter
Vehicle Classification	Compact Entry-level Urban Family Pure Electric 5-door 5-seater SUV
Overall Length × Width × Height	4435 mm × 1835 mm × 1560 mm
Wheelbase	2665 mm
Front Track / Rear Track	1540 mm / 1545 mm
Curb Weight	1460 kg
Rear Trunk Luggage Volume	320 Liters (Seats Upright) / 1020 Liters (Rear Seats Fully Folded)
Minimum Ground Clearance	160 mm
Minimum Turning Radius	5.4 m
Standard Wheel & Tire Size	17-inch Alloy Wheels with 215/60 R17 Comfort All-season Tires
Optional Wheel Upgrade Size	17-inch Two-tone Sport Alloy Wheels

2. Electric Powertrain & Dynamic Performance Specifications

Performance Item	Official Configuration Parameter
Electric Drive Layout	Front-mounted Permanent Magnet Synchronous Single Motor Front-Wheel Drive (FWD)
Motor Peak Output Power	120 kW / Peak Torque: 210 N·m
Motor Rated Continuous Power	60 kW Stable Constant Output
Transmission Type	Electric Single-speed Fixed Ratio Reducer Gearbox
Battery Type & Cooling System	Lithium Iron Phosphate (LFP) Safe Battery Pack, Air-cooled Intelligent Temperature Control System
Battery Rated Capacity	51.8 kWh
CLTC Comprehensive Pure Electric Range	430 km
Peak DC Fast Charging Power	60 kW Maximum DC Fast Charging Power
30% - 80% SOC DC Fast Charging Time	Within 35 Minutes
6.6kW AC On-board Charging Full Time (0-100%)	Approx. 8.2 Hours
WLTC Comprehensive Power Consumption	13.8 kWh / 100km
Maximum Electronically Limited Top Speed	150 km/h
Official 0-100km/h Acceleration Time	9.2 Seconds
Full Suspension Structure	Front MacPherson Strut Independent Suspension / Rear Torsion Beam Non-independent Suspension
External V2L Vehicle To Load Discharge Function	● Standard 2.2kW Outdoor Mobile Power V2L Output Function
Driving Mode Presets	● Eco / Normal / Sport / Individual Custom Mode

3. Exterior Standard Full Configuration

Exterior Feature Name	Full Range Standard Configuration Details
Front Lighting System	Full LED Headlight Assembly, Streamlined LED Daytime Running Light, Automatic Light Activation, Height Automatic Leveling, LED High Mount Third Brake Light
Side Rearview Mirrors	Body-colored Electric Adjustable & Auto-Folding Mirrors, Heating Defrost Function, Integrated LED Dynamic Turn Signal Indicators
Rear Tailgate & Taillights	Manual Rear Liftgate, Full LED Combination Taillights, High Gloss Rear Bumper Decoration
Window & Glass Functions	Heat Insulated Front Windshield, Privacy Tinted Rear Side Glass, Electric Front & Rear Window Lifting, Heated Windshield Washer Nozzles
Additional Exterior Accessories	Black Decorative Wheel Arches, Standard Roof Side Rails, Galvanized Anti-corrosion Vehicle Body, Closed EV Aerodynamic Front Grille

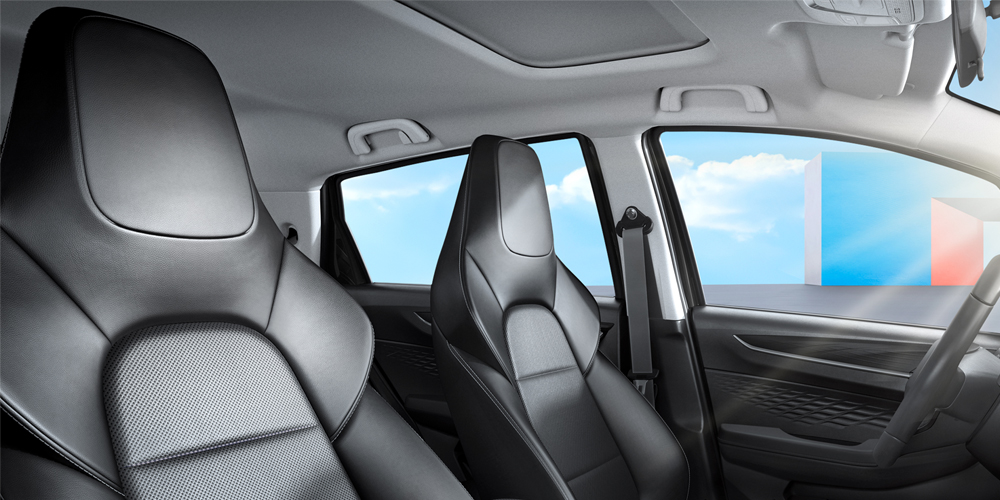

4. Interior Cabin & Comfort Configuration

Interior Item	Complete Configuration Description
Seat Upholstery Material	Premium Soft Fabric Seat Surface, Ergonomic Family Seat Design
Front Seat Adjustment	Driver 6-way Manual Adjustment, Passenger 4-way Manual Adjustment; Electric adjustment available for high trim version
Seat Comfort Functions	Front Seat Heating function optional for upgraded trims
Air Conditioning System	Automatic Intelligent Single Zone Air Conditioning System, PM2.5 Cabin Air Filter
Sunroof	○ Optional Panoramic Fixed Glass Sky Roof
Steering Wheel	Multi-function Steering Wheel with Physical Buttons for Audio & Cruise Control
In-car Convenience Features	Remote Keyless Entry & One-touch Push Button Start, Front USB-C Charging Ports, Central Door Lock, 12V Power Outlet in Cabin
Rear Seat Layout	60/40 Split-Folding Rear Bench Seat, Rear Center Armrest with Dual Cup Holders

5. Intelligent Cockpit & Infotainment System

Intelligent Hardware Item	Official Technical Parameters
On-board Infotainment Operating System	Livan Intelligent Vehicle Interactive System
Instrument Display	7-inch Full LCD Digital Instrument Cluster
Central Control Touch Screen	12.3-inch Floating High-definition Central Control Touch Display, Built-in Onboard Navigation System
AI Voice Assistant	Single-zone Intelligent Voice Recognition Control, Voice control for air conditioner and multimedia functions
Mobile Phone Interconnection	Compatible with Wireless Apple CarPlay, Wireless Android Auto, Bluetooth Audio Streaming & Hands-free Calling
Audio Speaker System	Standard 4-Speaker Sound System
Connected Vehicle Functions	4G On-board Network Module, Mobile App Remote Vehicle Status Query, Basic OTA Online System Upgrade Function, Built-in Front Driving Recorder

6. L2 Level Intelligent Driving Assistance Safety System

Safety Function Module	Standard Function Introduction
Perception Hardware	Front Long-range Millimeter Wave Radar + High Definition Front Camera Dual Sensing System, Front & Rear Ultrasonic Parking Radars, 360° Panoramic Surround View Camera
Full-speed Adaptive Cruise Control ACC	Full speed range Stop & Go function, intelligent vehicle following for highway and daily urban road scenarios
Lane Safety Assistance Suite	Lane Departure Warning LDW, Lane Keeping Assist LKA, Road Edge Departure Protection
Automatic Emergency Braking AEB	Forward active emergency braking, effective identification of pedestrians and road obstacles, forward collision early warning function
Blind Spot & Rear Traffic Safety	Blind Spot Monitoring BSM, Rear Cross Traffic Alert RCTA, Rear Reverse Obstacle Warning
Parking Assistance System	Panoramic Surround View Monitor, Dynamic Parking Trajectory Guide, Front & Rear Parking Distance Alert
Traffic Sign Recognition	TSR Traffic Speed Sign Recognition & Real-time Speed Reminder
Chassis Brake Stability Control	ABS Anti-lock Braking System, EBD Electronic Brake Force Distribution, BA Brake Assist, ESP Electronic Stability Program, TPMS Real-time Tire Pressure Monitoring, Electronic Auto Hold Parking Brake

7. Passive Crash Safety Configuration

Safety Configuration Item	Standard Safety Details
Complete Airbag Protection Layout	6-airbag Protection Layout: Front Driver & Passenger Main Airbags, Front Side Airbags, Full Length Front & Rear Curtain Airbags
Child Safety Protection	Dual Standard ISOFIX Child Seat Mounting Anchors on Rear Outer Seats, Rear Child Safety Door Locks, Pre-tensioned Load Limiter 3-point Safety Belts for all 5 seats
Body Crash Safety Structure	High-rigidity Reinforced Safety Cage Body, High tensile strength steel application rate, Front and rear crumple energy absorption zones, reinforced side impact door beams, compliant with mainstream five-star crash safety standards
LFP Battery Safety Protection	IP68 waterproof sealed battery tray, complete air-cooled thermal management system, passed strict collision, water immersion and extrusion safety certification tests
Anti-Theft Security System	Electronic Motor Immobilizer, Vehicle Anti-theft Alarm System, Encrypted Remote Central Locking System
Additional Passive Safety Design	Automatic hazard light activation during emergency hard braking, whiplash protection front seat structure, pedestrian-friendly energy-absorbing hood design, automatic high-voltage power cut-off after collision impact
