Leapmotor C11 Full Official Technical Configuration Specifications

Original factory complete parameters for Leapmotor C11 mid-size 5-door 5-seater luxury SUV, developed on Leapmotor self-developed dedicated C intelligent vehicle platform. It provides two energy forms: pure electric BEV (rear-wheel drive single motor & dual-motor all-wheel drive performance version) and extended range EREV plug-in hybrid version. Equipped with self-developed Hercules high-efficiency oil-cooled electric drive system, 800V silicon carbide high voltage fast charging architecture and CALB high-safety LFP lithium iron phosphate battery pack, standard front double wishbone + rear five-link independent suspension with FSD variable damping shock absorbers. All technical data is fully prepared for global overseas mid-size new energy SUV export trade display.

1. Exterior Body & Overall Dimension Parameters

Specification Item Official Standard Parameter
Vehicle Classification Mid-size Luxury 5-door 5-seater SUV, BEV Pure Electric / EREV Extended Range Hybrid Options
Overall Length × Width × Height 4780 mm × 1905 mm × 1658 mm
Wheelbase 2930 mm Ultra Long Wheelbase
Front Track / Rear Track 1630 mm / 1640 mm
Curb Weight Range 2030 kg (EREV RWD) / 2110 kg (BEV RWD) / 2330 kg (BEV AWD Performance)
Fuel Tank Capacity (EREV Only) 65 Liters, Compatible with RON 92 Regular Petrol
Rear Trunk Luggage Volume 537 Liters (Seats Upright) / 1203 Liters (Rear Seats Fully Folded Down)
Minimum Ground Clearance (Unloaded) 175 mm
Body Torsional Rigidity 34866 N·m/deg High Rigidity Cage Body Structure
High Strength Steel Application Ratio 80.84% High Tensile Steel, 16.79% Hot-formed Ultra High Strength Steel
Standard Wheel & Tire Size 20-inch Alloy Wheels with 255/45 R20 Low Noise Comfort All-season Tires
Optional Wheel Upgrade Size 20-inch High-performance Forged Sport Alloy Wheels

2. Powertrain & Dynamic Performance Specifications

Performance Item EREV Extended Range RWD Version BEV Pure Electric RWD Long Range Version BEV Pure Electric AWD High Performance Version
Full Power Architecture 1.5L Four-cylinder High-efficiency Range Extender + Single Rear Permanent Magnet Motor Rear-Wheel Drive Rear-mounted Hercules Permanent Magnet Synchronous Single Motor Rear-Wheel Drive, 800V SiC High Voltage Platform Front + Rear Dual Permanent Magnet Synchronous Motor Full-time All-Wheel Drive Performance System
Range Extender Peak Generator Power (EREV) 110 kW High Thermal Efficiency Generator Not Equipped Not Equipped
Front Motor Peak Output Power Not Equipped Not Equipped 200 kW / Peak Torque: 360 N·m
Rear Motor Peak Output Power 200 kW / Peak Torque: 360 N·m 220 kW / Peak Torque: 360 N·m 200 kW / Peak Torque: 360 N·m
System Comprehensive Total Power 200 kW (272 HP) 220 kW (299 HP) 400 kW (544 HP) Combined Full System Power
System Comprehensive Total Torque 360 N·m Total Output Torque 360 N·m Total Output Torque 720 N·m Ultimate Combined Total Torque
Transmission Type Single-speed Fixed Ratio Electric Reducer Gearbox Three-in-one Integrated Oil-cooled Electric Drive, Single-speed Reducer Dual Oil-cooled Electric Drive Assembly, Single-speed Fixed Ratio Gearbox
Battery Type & Cooling System CALB LFP Lithium Iron Phosphate Battery, Intelligent Liquid Cooling Thermal Management System CALB High Density LFP Lithium Iron Phosphate Battery, Full 800V High Voltage Liquid Cooling Platform CALB High Safety LFP Lithium Iron Phosphate Liquid-cooled Battery Pack
Battery Rated Capacity 41.7 kWh 81.9 kWh 90 kWh High Capacity Performance Battery
CLTC Pure Electric Range 300 km 640 km Long Range 550 km CLTC Pure Electric Range
CLTC Full Combined Comprehensive Range 1220 km Full Fuel & Electric Combined Range Pure Electric Only Pure Electric Only
Peak DC Ultra-fast Charging Power 100 kW Max DC Fast Charging Power 250 kW Peak 800V High Power DC Hyper Charging 250 kW Peak Ultra High Power DC Fast Charge
30% - 80% SOC DC Fast Charging Time Within 28 Minutes Within 16 Minutes Within 16 Minutes
WLTC Comprehensive Power / Fuel Consumption 5.9 L / 100km Hybrid Feeding Fuel Consumption 14.2 kWh / 100km Comprehensive Power Consumption 15.1 kWh / 100km Comprehensive Power Consumption
Maximum Electronically Limited Top Speed 170 km/h 190 km/h 210 km/h
Official 0-100km/h Acceleration Time 7.9 Seconds 6.1 Seconds 4.8 Seconds Official Performance Benchmark
Full Suspension Standard Configuration ● Standard Front Double Wishbone Independent Suspension + Rear Five-link Independent Suspension, FSD Variable Damping Shock Absorbers ● Standard Double Wishbone Front / Five-link Rear Full Independent Suspension + FSD Adaptive Damping System ● Standard Optimized Performance Chassis Tuning + Full FSD Variable Damping Shock Absorber Suite
External V2L Vehicle To Load Discharge Function ● Standard 3.3kW Outdoor Mobile Power V2L External Power Output Function ● Standard 3.3kW Full Function V2L Camping Power Supply ● Standard 3.3kW High Power V2L Vehicle External Discharge Function
Driving Mode Presets ● Comfort / Standard / Sport / Eco / Snow / Individual Custom Mode ● Comfort / Standard / Sport / Eco / Snow / Individual Custom Mode ● Comfort / Standard / Sport Plus / Eco / Snow / Race / Individual Performance Custom Mode

3. Exterior Standard Full Configuration

Exterior Feature Name Full Range Standard Configuration Details

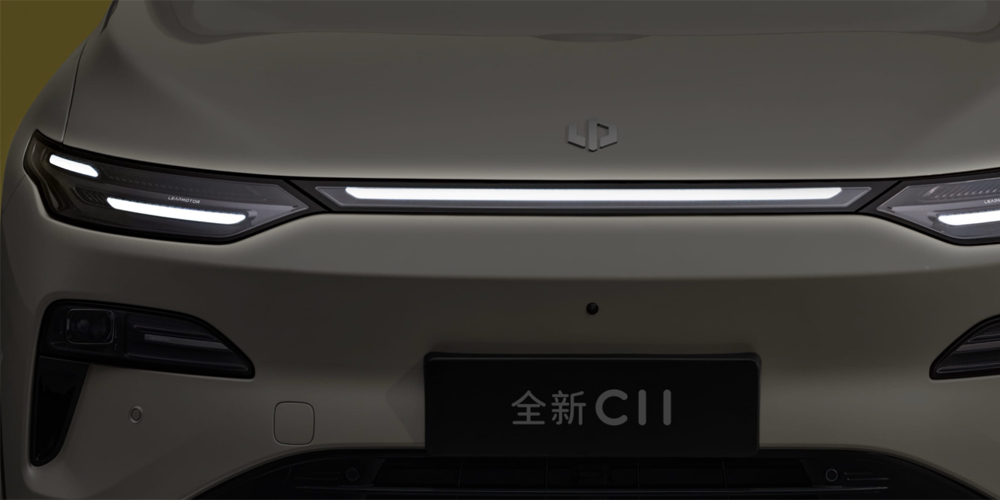

Front Lighting System Full LED Streamlined Adaptive Headlight Assembly, Full Width Through-type LED Daytime Running Light Strip, Automatic Light On/Off Sensor Control, Intelligent Auto High/Low Beam Switching, LED High Mount Third Brake Light
Side Rearview Mirrors Body-colored Electric Adjustable & Auto-Folding Mirrors, Full Heating Defrost Function, Integrated LED Dynamic Sequential Turn Signal Lights, Built-in 360° Surround View Camera Modules
Rear Tailgate & Taillight Assembly Hands-free Inductive Kick Sensor Electric Power Liftgate with Anti-pinch & Height Memory Function, Full Width Through-type LED Dynamic Sequential Taillight Combination, Aerodynamic Rear Diffuser Bumper Package
Window & Glass Functions Double-layer Acoustic Insulation Front Windshield, Privacy Tinted Rear Side Glass, Rain-Sensing Variable Speed Front Wipers, Heated Windshield Washer Nozzles, Rear Window Electric Defroster System
Premium Exterior Extra Equipment Full Galvanized Anti-corrosion Vehicle Body, Active Aerodynamic Closed Front Grille Air Shutters, Hidden Flat Windshield Wiper Design, Standard Integrated Roof Rails, Multiple Premium Metallic & Matte Luxury Two-tone Body Paint Color Options

4. Luxury Interior Cabin & Comfort Configuration

Interior Item Complete Configuration Description
Seat Upholstery Material Mid Trim: Premium Soft Synthetic Leather; Flagship Top Trim: High-density Genuine Nappa Leather Upholstery, Full Soft Wrapped Cabin Interior, Real Aluminum & Natural Solid Wood Premium Inlay Decorative Trim
Front Driver & Co-pilot Zero-gravity Seats Dual Front Aviation Zero-gravity Comfort Seats, Driver 12-way Full Electric Adjustment with 4-way Lumbar Support, Side Bolster Adjustment & 3-position Memory Function; Passenger 12-way Full Electric Power Adjustment
Standard Seat Comfort Functions Front Seat Heating & Ventilation Standard across all trims, Front Multi-mode Full Body Massage Function Equipped on Mid & High Trims, Outer Rear Seat Heating Function Standard for all versions
Air Conditioning System Dual-Zone Independent Intelligent Automatic Heat Pump Climate Control System, Independent Full Rear Air Outlets, PM2.5 High-efficiency Air Purification System with Negative Ion Fresh Air Generator, Real-time Cabin Air Quality Monitoring Sensor
Sunroof Configuration ● Standard Ultra-large Panoramic Electric Glass Sunroof with Electric Sunshade, Double-layer Noise & Heat Insulation Laminated Safety Glass
Steering Wheel Specification Full Genuine Leather Wrapped Electronic Column Shift Sport Steering Wheel, Optional Heating Function, Touch-sensitive Physical Control Buttons for Intelligent Driving Assistance & Multimedia Audio Functions
Cabin Convenience Core Features Full Comfort Access Full Vehicle Keyless Entry & One-touch Push Start Ignition, Dual Wireless Fast Qi Phone Charging Pads, Front & Rear USB-C Fast Charging Ports, Full Cabin Multi-color Interactive Ambient LED Lighting, Frameless Auto-dimming Interior Rearview Mirror, Multiple 12V Power Sockets in Front & Rear Cabin Area

5. Leapmotor OS Intelligent Cockpit & Infotainment System

Intelligent Hardware Item Official Technical Parameters
On-board Core Cockpit Computing Chip Qualcomm Snapdragon 8295 Flagship Automotive-grade Intelligent Cockpit SoC Processor
Main Cockpit Triple Screen Layout Full LCD Digital Instrument Cluster + Passenger Entertainment Screen + Central Vertical Floating Large HD Touchscreen Main Control Display
AI Intelligent Voice Assistant Full Cabin Dual-zone Independent Voice Recognition Control, Ultra-fast wake-up response speed, supports continuous natural multi-round dialogue and full vehicle function voice control execution
Mobile Phone Interconnection Compatibility Full Compatibility with Wireless Apple CarPlay, Wireless Android Auto, Bluetooth High-fidelity Audio Streaming & Hands-free Calling Function
Premium Audio Sound System Standard 12-speaker Hi-Fi Surround Sound Theater-grade Audio System, Optional Premium Tuned Surround Audio System with Independent Subwoofer for High-end Flagship Trims
Smart Connected Vehicle Core Functions Full-time 4G On-board Network Module, Leapmotor Mobile App Full Remote Vehicle Control, Complete Over-the-air OTA Full Vehicle System Online Upgrade, Built-in HD Full Panoramic Driving Recorder Camera, Real-time Remote Vehicle Status Monitoring & Anti-theft Alert Notification

6. Leapmotor Pilot L2+ Full-scenario Intelligent Driving Assistance Safety System

Safety Function Module Standard Function Introduction
Full Standard Perception Hardware Suite 1 Front Long-range Millimeter Wave Radar, 8 High-definition Surround Cameras, 12 Front & Rear Ultrasonic Parking Sensors, Complete 360° All-round Panoramic Surround View Environmental Perception System
High-end Optional Premium Hardware ○ Optional 128-line Solid-state LiDAR Version, 3 Millimeter Wave Radars, 11 HD Cameras, Full High-performance Perception Sensor Suite with High-computing On-board Chip
Full-speed Adaptive Cruise Control ACC Full speed range Stop & Go operation, intelligent vehicle following for highway cruising, urban traffic congestion, ramp entry/exit and complex daily urban road working scenarios
Highway NCA Navigation Cruise Assist Highway automatic intelligent lane change, overtaking, ramp entry/exit, lane merging and obstacle avoidance automatic control function
Lane Keeping & Lane Safety Protection Lane Departure Warning LDW, Active Lane Centering Control LCC, Emergency Lane Intervention Active Correction, Road Edge Departure Protection Function
Multi-scenario Automatic Emergency Braking AEB Forward & Reverse Full-range Emergency Braking, Precise identification of pedestrians, cyclists, motorcycles and static road obstacles, full Front & Rear Cross-traffic Collision Prevention Protection
Blind Spot & Rear Traffic Safety Blind Spot Monitoring BSM, Rear Cross Traffic Alert RCTA, Safe Exit Door Opening Warning Reminder, Rear Approaching Vehicle Early Warning System
Intelligent Full-scenario Parking Assistant Suite 540° Transparent Chassis Panoramic Surround View Camera System, Dynamic Real-time Parking Trajectory Guidelines, Automatic Vertical & Horizontal Intelligent Parking Assist Function
Driver Monitoring & Traffic Recognition DMS Real-time Driver Fatigue Monitoring Alert System, TSR Traffic Sign Recognition & Automatic Speed Limit Identification, Full Vehicle Sentry Anti-theft Surveillance Mode
Full Chassis Stability & Brake Control ESP Electronic Stability Program, ABS Anti-lock Braking System, EBD Electronic Brake Force Distribution, EBA Emergency Brake Assist, Electronic Traction Control System, Real-time Direct TPMS Intelligent Tire Pressure Monitoring, Electronic Auto Hold Parking Brake

7. Passive Crash Safety Configuration

Safety Configuration Item Standard Safety Details
Complete Airbag Protection Layout Full 6-airbag Premium Protection System: Front Driver & Passenger Main Airbags, Front Side Airbags, Full-length Front & Rear Integrated Curtain Side Airbags
Child Safety Protection System Dual Standard ISOFIX Child Seat Mounting Anchors on Rear Outer Seats, Rear Child Safety Door Locks, Pre-tensioned Load Limiter 3-point Safety Belts equipped for all 5 seating positions
Body Crash Safety Architecture Nine-horizontal & Seven-longitudinal High Rigidity Reinforced Cage Safety Cabin, Optimized Front & Rear Progressive Crumple Energy Absorption Zones, Reinforced Side Impact Door Anti-collision Beams, Fully Compliant with C-NCAP Five-star Global Crash Safety Test Standards
LFP High Voltage Battery Safety Protection Fully sealed IP68 waterproof reinforced steel battery tray housing shell, complete intelligent full-time liquid cooling battery thermal management system, passes strict pin piercing crash impact, 24-hour deep water immersion, extrusion and thermal runaway anti-fire safety certification tests
Full Vehicle Anti-theft Security System Advanced Grade Electronic Drive Motor Immobilizer, Full Vehicle Anti-theft Alarm System with Interior Surveillance Function, Anti-towing Protection Lock, Encrypted Remote Central Locking System
Additional Passive Safety Design Automatic Emergency Hazard Light Activation triggered during hard emergency braking, Whiplash Optimized Front Seat Headrest Structure, Pedestrian-friendly Energy-absorbing Bonnet Design, Automatic High Voltage Power Cut-off Function activated immediately after collision impact
