Toyota RAV4

Toyota RAV4 Full Official Technical Configuration Specifications

Original factory complete parameters for Toyota RAV4 compact 5-door 5-seater urban & off-road SUV, covering 2.0L naturally aspirated gasoline powertrain and 2.5L Dual Engine full hybrid system, available in Front-Wheel Drive and Dynamic Torque Vectoring AWD. Prepared fully for global overseas export trade display.

1. Exterior Body & Overall Dimension Parameters

Specification Item	Official Standard Parameter
Vehicle Classification	Compact 5-door 5-seater Family & Off-road SUV
Overall Length	4600 mm
Overall Width	1855 mm
Overall Height	1680 mm
Wheelbase	2690 mm
Front Track / Rear Track	1607 mm / 1622 mm
Curb Weight Range	1540 kg (2.0L FWD) / 1645 kg (2.0L AWD) / 1715 kg (2.5L Hybrid AWD)
Fuel Tank Capacity	55 Liters
Luggage Volume (Rear Seats Upright)	580 Liters
Max Luggage Volume (Rear Seats Fully Folded)	1690 Liters
Standard Wheel Rim Size	17-inch Alloy Wheels with 225/60 R17 All-season Tires
Optional Wheel Rim Size	18-inch Two-tone Sport Alloy Wheels
Minimum Ground Clearance	193 mm
Max Braked Towing Capacity	1500 kg (Gasoline) / 1200 kg (Hybrid)

2. Powertrain & Dynamic Performance Specifications

Performance Item	2.0L NA Petrol FWD	2.0L NA Petrol Dynamic AWD	2.5L Dual Engine Hybrid AWD
Engine Layout	2.0L Inline 4-Cylinder Naturally Aspirated Petrol Engine	2.0L Inline 4-Cylinder Naturally Aspirated Petrol Engine	2.5L Atkinson Cycle NA Engine + Dual Permanent Magnet Electric Motors Hybrid System
Engine Displacement	1987 cc	1987 cc	2487 cc
Engine Maximum Output Power	126 kW / 171 HP @ 6600 rpm	126 kW / 171 HP @ 6600 rpm	139 kW / 189 HP Engine Output
Engine Peak Torque	209 N·m @ 4400-5000 rpm	209 N·m @ 4400-5000 rpm	236 N·m Engine Torque
System Comprehensive Total Power (Hybrid)	N/A	N/A	181 kW / 245 HP Combined System Power
Transmission Type	Direct Shift CVT Continuously Variable Transmission	Direct Shift CVT Transmission	E-CVT Electronic Continuously Variable Transmission
Driving Layout	Front Wheel Drive (FWD)	Dynamic Torque Control Permanent All-Wheel Drive	Electronic On-demand All-Wheel Drive E-Four System
Hybrid Battery Type	Not Equipped	Not Equipped	Nickel-metal Hydride Low Maintenance Hybrid Battery Pack
WLTC Combined Fuel Consumption	6.4 L / 100km	6.9 L / 100km	4.7 L / 100km
Maximum Top Speed	190 km/h	190 km/h	180 km/h
0-100km/h Acceleration Time	10.2 Seconds	10.8 Seconds	8.5 Seconds
Suspension Structure	Front MacPherson Strut Independent Suspension / Rear Double Wishbone Independent Suspension	Front MacPherson Strut / Rear Double Wishbone Independent Suspension	Front MacPherson Strut / Rear Double Wishbone Independent Suspension
Driving Mode Selection	● Eco / Normal / Sport Mode	● Eco / Normal / Sport / Mud & Sand / Rock & Dirt Off-road Modes	● EV / Eco / Normal / Power / Trail Off-road Mode

3. Exterior Standard Full Configuration

Exterior Feature Name	Full Range Standard Configuration Details

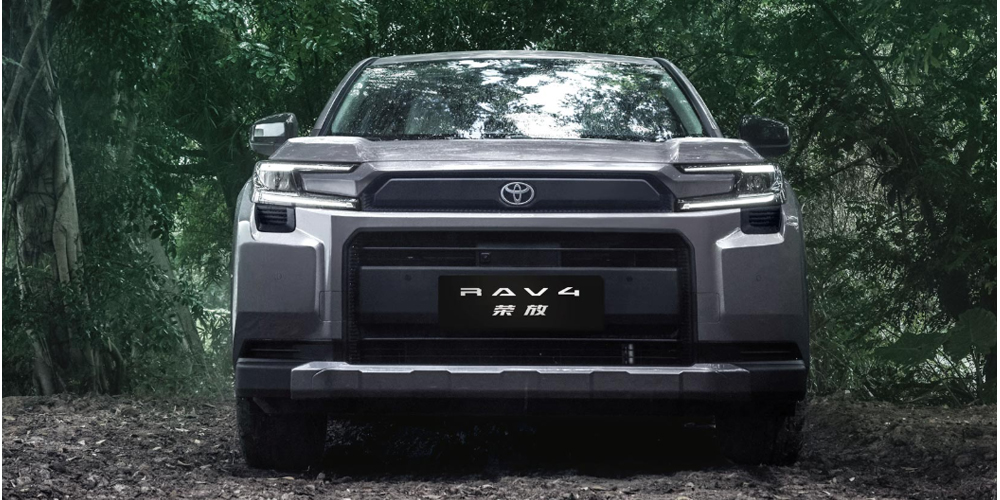

Front Lighting System	Full LED Projector Headlight Assembly, LED Daytime Running Lights, Automatic Light Activation, Height Automatic Leveling, Auto High Beam Control, LED Front Fog Lights on Mid & High Trims
Side Rearview Mirrors	Body-colored Electric Adjustable & Auto-Folding Mirrors, Heating Function, Integrated LED Turn Signal Indicators
Rear Tailgate & Taillights	Manual Rear Liftgate (Hands-Free Power Tailgate Optional for High Trim), Full LED Combination Taillights, High-mounted LED Stop Lamp
Window & Glass Functions	Heat Insulated Front Windshield, Rear Privacy Tinted Glass, Rain-Sensing Front Wipers, Heated Windshield Washer Nozzles, Rear Window Electric Defroster
Additional Exterior Accessories	Black Functional Roof Rails, Matte Black Wheel Arch Cladding, Full Galvanized Anti-Corrosion Body Structure, Compact Temporary Spare Tire, Lockable Wheel Nuts

4. Interior Cabin & Comfort Configuration

Interior Item	Complete Configuration Description
Seat Upholstery Material	Base Grade: Premium Fabric Seats; Mid Grade: Synthetic Leatherette; Top Trim: Soft Genuine Leather Upholstery
Front Seat Adjustment	Driver 10-way Electric Adjustment with Lumbar Support & 2-position Memory, Passenger 6-way Electric Adjustment for Mid and High Trims
Seat Comfort Functions	Heated Front Seats Standard on Mid Trims, Front Seat Ventilation Function Available for Top High-end Versions
Air Conditioning System	Dual-Zone Automatic Intelligent Climate Control System, Independent Rear Air Outlets, PM2.5 Activated Carbon Air Purification Filter
Sunroof	○ Optional Panoramic Electric Tilt & Slide Sunroof with Electric Sunshade
Steering Wheel	Leather Wrapped Multi-function Steering Wheel, Audio & Cruise Control Buttons, Heating Function Optional for High Trims
In-car Convenience Features	Smart Key Keyless Entry & Push Button Start, Wireless Qi Phone Charging Pad, Front & Rear USB Charging Ports, Multi-color Ambient Interior Lighting, Auto-dimming Rearview Mirror, Cabin & Trunk 12V Power Outlets
Rear Seat Layout	60/40 Split-Folding Rear Bench Seat, Rear Center Armrest with Dual Cup Holders, Adjustable Rear Seat Backrest Angle

5. Intelligent Cockpit & Infotainment System

Intelligent Hardware Item	Official Technical Parameters

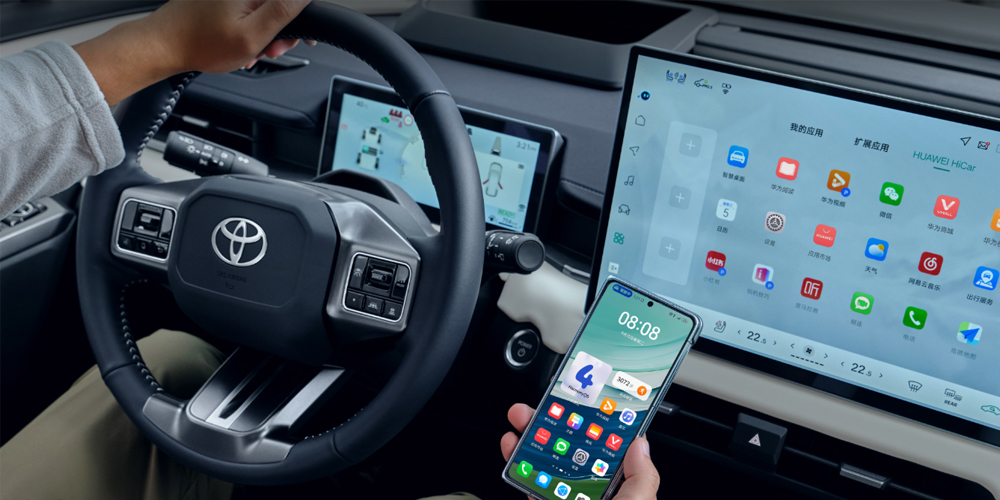

On-board Infotainment Platform	Toyota Latest Generation Intelligent Multimedia System

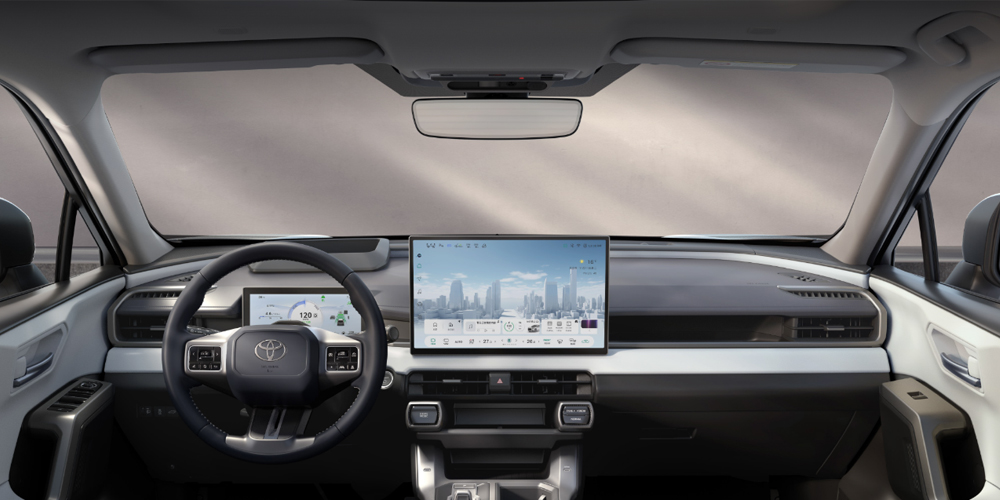

Instrument Display	Standard 7-inch Multi-information LCD Display, Full 12.3-inch Digital Dashboard Optional for High Trims
Central Infotainment Touch Screen	10.25-inch Floating High-definition Touch Display, Built-in Real-time Navigation System
Head-up Display HUD	○ Optional Color Head-Up Display System for Top Trim Models
Intelligent Voice Control	Multi-zone Voice Recognition Assistant, Supports voice control for air conditioner, multimedia and navigation functions
Mobile Phone Connectivity	Full Compatibility with Wireless Apple CarPlay, Wireless Android Auto, Bluetooth Hands-free Calling & Audio Streaming
Audio Speaker System	Standard 6-Speaker Sound System, Premium JBL 9-speaker Hi-Fi Surround Sound Audio System Optional

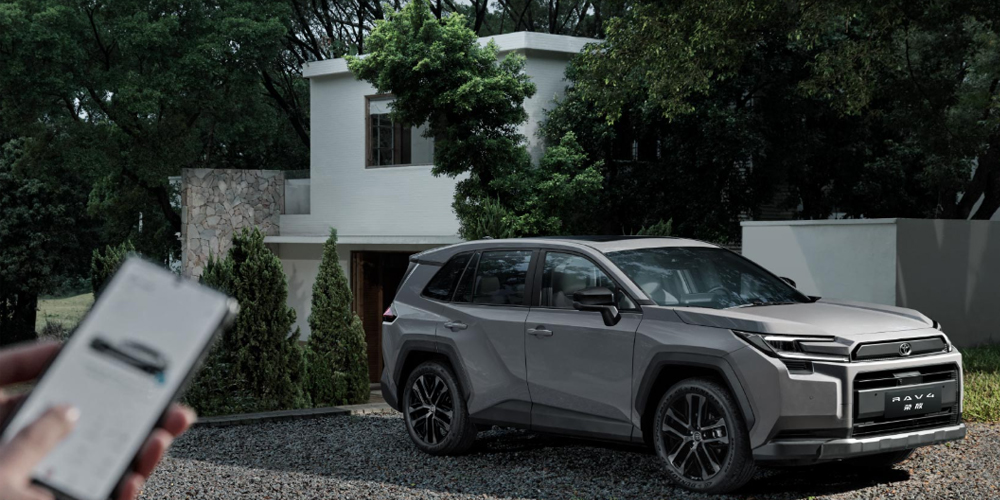

Connected Vehicle Services	4G On-board Network Module, Toyota Smart Mobile App Remote Control, OTA Online System Upgrade, Emergency E-Call Service, Remote Vehicle Status Monitoring

6. TSS 3.0 L2 Level Active Driving Safety System

Safety Function Module	Standard Function Introduction
Perception Hardware	High Definition Front Camera + Millimeter Wave Radar Dual Sensing System, Full Set Front & Rear Ultrasonic Parking Sensors, 360° Panoramic Surround View Camera
Full-speed Dynamic Radar Cruise Control DRCC	Full speed range Stop & Go function, intelligent vehicle following for highway and urban congested road conditions
Lane Safety Assistance	Lane Departure Alert LDA, Lane Tracing Assist LTA, Road Edge Detection Protection
Pre-Collision System PCS	Forward Automatic Emergency Braking, Accurate recognition of pedestrians, cyclists, motorcycles and daytime bicycles, Forward Collision Warning System
Blind Spot & Rear Traffic Safety	Blind Spot Monitor BSM, Rear Cross Traffic Alert RCTA, Rear Automatic Braking Function, Safe Exit Assist Door Warning
Parking Assistance System	Intelligent Panoramic View Monitor, Dynamic Parking Guidelines, Front & Rear Park Distance Control Sensors, Intelligent Reverse Braking Assist
Driver Monitoring & Recognition	Driver Fatigue Alert System, Road Sign Assist RSA Automatic Traffic Sign Recognition
Chassis Brake Stability Control	ABS Anti-lock Braking System, EBD Electronic Brake Force Distribution, BA Brake Assist, VSC Vehicle Stability Control, TRAC Traction Control, Real-time TPMS Tire Pressure Monitoring, Auto Hold Electronic Parking Brake

7. Passive Crash Safety Configuration

Safety Configuration Item	Standard Safety Details
Full Airbag Layout	Complete 8-airbag Full Protection Layout: Front Driver & Passenger Airbags, Front Side Airbags, Rear Side Airbags, Full Length Front & Rear Curtain Airbags, Driver Knee Airbag
Child Safety Protection	Rear Outer Dual ISOFIX Child Seat Mounting Anchors, Rear Child Safety Door Locks, Pre-tensioned 3-Point Safety Belts for All 5 Seating Positions
Body Crash Safety Structure	High-rigidity Ring-shaped Reinforced Safety Cage Body, Ultra-high tensile strength steel application, Front & Rear Controlled Crumple Energy Absorption Zones, Reinforced Side Impact Door Beams, Compliant with Euro NCAP Five-star Crash Safety Standards
Hybrid Battery Safety (Hybrid Version)	Fully sealed waterproof battery housing, complete thermal protection structure, impact resistant reinforced battery tray design
Anti-Theft Security System	Electronic Engine Immobilizer, Full Vehicle Anti-theft Alarm System, Encrypted Remote Central Locking, Anti-towing Protection Function
Additional Passive Safety Design	Emergency Automatic Hazard Light Activation during Hard Braking, Whiplash Reducing Front Seat Structure, Pedestrian Friendly Energy-absorbing Bonnet Design, Automatic Fuel Cut-off after Collision Impact
