Denza N9

Denza N9 Full Official Technical Configuration Specifications

Original factory complete parameters for Denza N9 large flagship 6-seat luxury plug-in hybrid SUV, adopting Yi Sanfang three independent motor drive technology, Yunzhan-A intelligent air suspension system and Blade Battery safety technology. All technical data is prepared exclusively for global overseas luxury new energy vehicle export display.

1. Exterior Body & Overall Dimension Parameters

Specification Item	Official Standard Parameter
Vehicle Classification	Full-size Luxury Large SUV, Standard 6-seat Independent Captain Chair Layout
Overall Length	5258 mm
Overall Width	2030 mm
Overall Height	1830 mm
Wheelbase	3125 mm
Curb Weight Range	2680 kg (Standard PHEV) / 2755 kg (Flash Charging Version)
Fuel Tank Capacity	68 Liters
Luggage Volume (6-seat Upright)	550 Liters
Max Luggage Volume (Rear Seats Fully Folded)	1460 Liters
Minimum Turning Radius (Rear Wheel Steer)	4.65 m
Standard Wheel Rim Size	21-inch Forged Alloy Wheels with 275/45 R21 Silent Tires
Optional Wheel Rim Size	22-inch Star Polished Forged Sport Alloy Wheels
Core Exterior Function	Hidden Pop-out Door Handles, Full LED Dynamic Sequential Light System, Streaming Rear View Mirror, Intelligent Electric Suction Doors

2. Powertrain, Battery & Dynamic Performance Specs

Performance Item	Standard PHEV Version	800V Flash Charging PHEV Version
Power System Layout	2.0T Turbo Engine + Front Permanent Magnet Motor + Dual Independent Rear Permanent Magnet Motors (Yi Sanfang 3-motor AWD)	2.0T High-efficiency Turbo Engine + Three Independent Permanent Magnet Motors Full AWD System
2.0T Engine Peak Power	152 kW / 207 HP, Peak Torque 325 N·m	152 kW / 207 HP, Peak Torque 325 N·m
Front Motor Max Output	200 kW, Peak Torque 315 N·m	200 kW, Peak Torque 315 N·m
Single Rear Motor Max Output	240 kW per rear motor, 360 N·m torque each	240 kW per rear motor, 360 N·m torque each
System Comprehensive Total Power	680 kW (925 HP)	680 kW (925 HP)
System Comprehensive Total Torque	1035 N·m	1035 N·m
Battery Type	LFP Blade Lithium Iron Phosphate Battery	Second Generation Ultra-fast Charging Blade Battery
Battery Rated Capacity	46.9 kWh	75.3 kWh
CLTC Pure Electric Range	230 km	420 km
CLTC Full Comprehensive Range (Full Fuel & Full Charge)	1330 km	1530 km

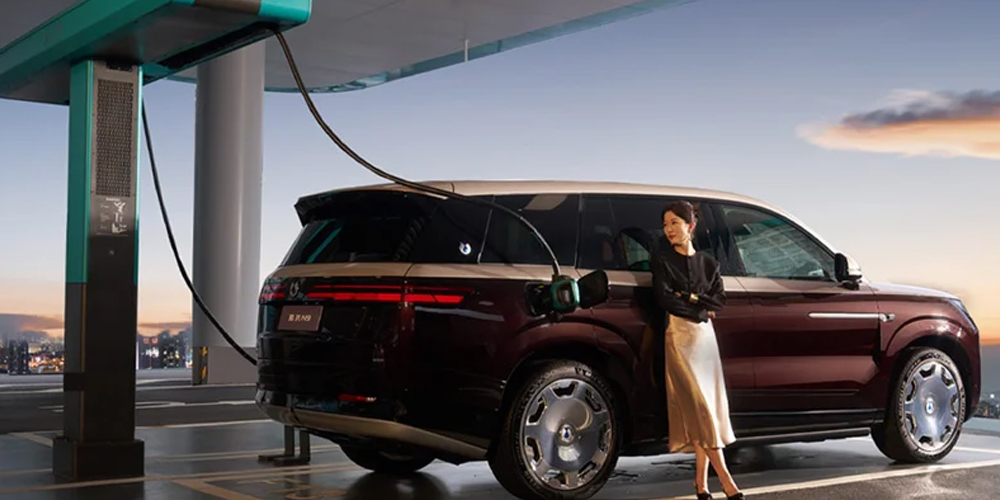

DC Fast Charging Performance	100kW DC Charging, 30%-80% SOC within 19 minutes	800V Ultra High Voltage Flash Charge, add 200km range in only 9 minutes
AC Onboard Charging Power	6.6 kW	11 kW High Power Onboard Charger
0-100km/h Acceleration Time	3.9 Seconds	3.7 Seconds
Maximum Top Speed	230 km/h	230 km/h
Core Yi Sanfang Exclusive Functions	● Crab Walk 15° Lateral Travel, Compass U-turn, Independent Rear Wheel Steering, High-speed Tire Blowout Stability Control	● Full Yi Sanfang Function Suite + Intelligent Terrain Mode System
External V2L Vehicle To Load Discharge	● Standard 6kW Outdoor High Power V2L Power Output	● Standard 6kW External Power Discharge Function

3. Chassis & Suspension Core Configuration

Chassis Item	Full Standard Configuration Details
Front Suspension Structure	Double Wishbone Independent Suspension with Forged Aluminum Upper & Lower Control Arms
Rear Suspension Structure	Five-link Independent Suspension with Full Aluminum Alloy Control Arms
Core Chassis System	● Standard Yunzhan-A Dual-chamber Air Suspension + Continuously Variable Damping Shock Absorbers, Road Preview 2.0 System
Rear Wheel Steering System	● Standard 10° Rear Active Wheel Steering System
Brake System	Bosch IPB Integrated Brake Control System, Front 6-piston Fixed Performance Calipers, Perforated Ventilated Brake Discs Front & Rear
Steering System	EPS Variable Ratio Electric Power Steering, Comfort / Sport Mode Adjustable Steering Weight
Driving Mode Presets	9 Professional Modes: Auto, Comfort, Sport, Snow, Mud, Sand, Crab Walk, Off-road, Custom Individual Mode

4. Exterior Standard Full Configuration

Exterior Feature Name	Full Range Standard Configuration Details
Front Lighting System	Full LED Intelligent Adaptive Headlight Assembly, Full-width Through LED DRL Strip, Automatic Height Adjustment, Rain Light Auto Activation, Dynamic Turning Lights
Side Rearview Mirrors	Body-colored Electric Auto-Folding & Adjustable Mirrors, Heating Function, Integrated LED Dynamic Turn Signals, Built-in Side View Cameras
Rear Tailgate & Lighting	Hands-free Inductive Electric Power Tailgate with Height Memory & Anti-pinch, Full LED Dynamic Sequential Taillight Combination
Window & Glass Functions	Double-layer Acoustic Insulation Front & Rear Door Glass, Heat Insulated Front Windshield, Rear Privacy Tinted Glass, Rain Sensing Front Wipers, Heated Washer Nozzles, Rear Window Electric Defroster
Premium Exterior Extras	Full Galvanized Anti-corrosion Body, Intelligent Electric Suction Doors, Welcome Light Carpet Ambient Lighting, Multiple Two-tone Luxury Body Color Options

5. Luxury Interior Cabin & Comfort Configuration

Interior Item	Complete Configuration Description
Seat Upholstery Material	Full Cabin Premium Nappa Genuine Leather Upholstery, Luxury Solid Wood Interior Trim, Metal Electroplated Decorative Components
First Row Seat Adjustment	Driver 12-way Electric Adjustment with 4-way Lumbar Support, Active Side Bolster Support & 3-position Memory; Passenger 12-way Electric Zero Gravity Seat
Second Row Captain Seats	Dual Independent Electric Captain Chairs, Full Electric Recline, Dual Electric Footrests, Heating / Ventilation / Multi-mode Massage Functions Standard
Third Row Seats	Electric Adjustable Backrest Angle, Independent Heating Function, Ample Legroom Supported by 3125mm Ultra-long Wheelbase
Air Conditioning System	4-Zone Independent Intelligent Automatic Climate Control System, Full Cabin PM2.5 Air Purification + Negative Ion Fresh Air System, Rear Independent Full Air Outlets
Sunroof	● Standard Ultra-large Panoramic Electric Sunroof with Double-layer Sound Insulation Glass & Electric Sunshade
Steering Wheel	Genuine Full Leather Wrapped Flat-bottom Multi-function Steering Wheel, Standard Heating Function, Physical Shortcut Buttons for Intelligent Driving Control
Full Cabin Convenience Features	Full Car Keyless Entry & One-touch Push Start, Wireless 50W Fast Phone Charging Pad, Front & Rear USB-C Fast Charging Ports, Full Cabin Multi-color Ambient LED Lighting, Frameless Auto-dimming Streaming Rearview Mirror, Multiple 12V Power Outlets in All Rows

6. Intelligent Cockpit & Infotainment System

Intelligent Hardware Item	Official Technical Parameters
On-board Core Computing Chip	Top-tier 4nm Flagship Automotive-grade Intelligent Cockpit Processor

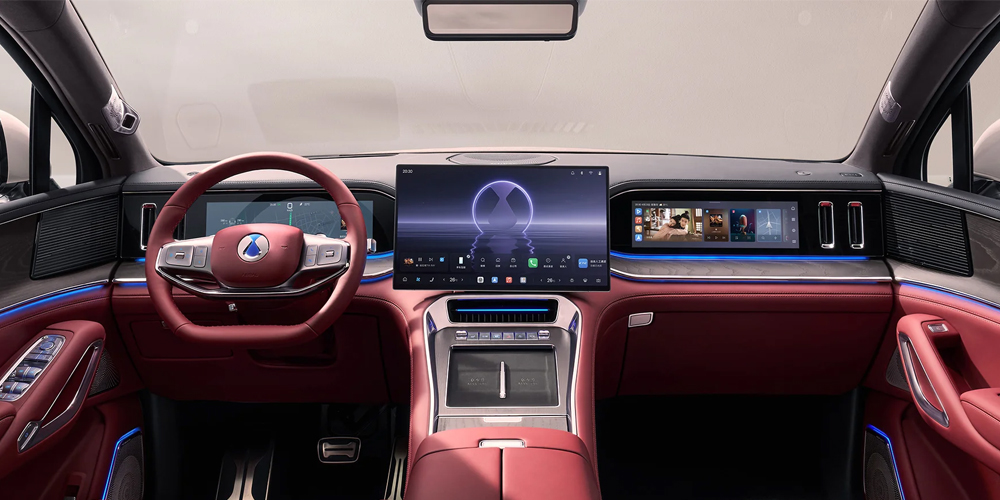

Main Cockpit Screen Layout	15.6-inch Floating Central Control Touch Screen + 12.3-inch Full LCD Digital Instrument Cluster
Rear Entertainment Screen	● Standard 17.3-inch Independent Rear Cabin Entertainment Touch Display for Second-row Passengers
Head-up Display HUD	● Standard 50-inch Large-size AR Augmented Reality Head-Up Display System
AI Intelligent Voice Assistant	Full Cabin Four-zone Independent Voice Recognition, Ultra-fast Wake Response, Supports Continuous Multi-round Dialogue & Full Vehicle Function Voice Control
Mobile Phone Interconnection	Full Compatibility with Wireless Apple CarPlay, Wireless Android Auto, Bluetooth Hands-free Calling & High-fidelity Audio Streaming
Premium Audio System	● Standard Devialet 20-speaker Theater-grade Surround Sound Hi-Fi Audio System
Smart Connected Vehicle Functions	5G Full-time On-board Network Module, Denza Mobile App Full Remote Control, Complete OTA Online System Upgrade, Built-in 4K Ultra HD Full Panoramic Driving Recorder Camera, Digital Smart Key & Remote Vehicle Status Monitoring

7. DiPilot L2+ Full-scenario Intelligent Driving Assistance System

Safety Function Module	Standard Function Introduction
Full Perception Hardware (Laser Radar Version)	1 High-precision Solid-state Laser Radar, 5 Millimeter Wave Radars, 11 HD Ultra-high Definition Cameras, 12 Ultrasonic Parking Radars, Full 360° All-round Environmental Perception
Full-speed Adaptive Cruise Control ACC	Full speed range Stop & Go function, Intelligent Vehicle Following for Highway, Urban Congestion and Complex Road Conditions
Full-scenario NCA Navigation Cruise Assist	Highway & Urban Full-scenario Navigation Pilot, Automatic Lane Change, Overtaking, Ramp Entry/Exit, Automatic Toll Gate Passing Function
Lane Safety Control System	Lane Departure Warning LDW, Lane Keep Assist LKA, Emergency Lane Keeping ELK Active Safety Intervention Correction
Advanced AEB Automatic Emergency Braking	Forward & Reverse Full-range Emergency Braking, Precise Recognition of Pedestrians, Cyclists, Motorcycles and Static Obstacles, Full Cross-traffic Collision Prevention Protection
Blind Area & Rear Traffic Safety	Blind Spot Monitoring BSM, Rear Cross Traffic Alert RCTA, Door Open Warning DOW, Rear Approaching Vehicle Obstacle Early Warning
Intelligent Parking Suite	540° Transparent Chassis Panoramic Surround View Camera, Yi Sanfang Special Intelligent Parking, Memory Route Parking, Remote Mobile App Controlled Parking, Automatic Exit Parking Function
Driver Monitoring System	DMS Driver Fatigue Real-time Monitoring System, TSR Traffic Sign Recognition & Automatic Speed Limit Identification, Full Vehicle Sentry Anti-theft Surveillance Mode
Full Chassis Active Safety Control	ABS Anti-lock Braking, EBD Electronic Brake Force Distribution, EBA Emergency Brake Assist, ESC Electronic Stability Control, Active Anti-rollover System, Crosswind Stabilization Control, Real-time TPMS Intelligent Tire Pressure Monitoring

8. Passive Crash Safety Configuration

Safety Configuration Item	Standard Safety Details
Full Airbag Protection Layout	Complete 8-airbag Full Luxury Protection System: Front Driver & Passenger Main Airbags, Front Side Airbags, Second Row Side Airbags, Full Three-row Full-length Curtain Airbags, Driver Knee Airbag
Child Safety Protection	Dual Standard ISOFIX Child Seat Fixed Anchors on Second Row Captain Chairs, Rear Child Safety Door Locks, Pre-tensioned 3-point Safety Belts for All 6 Seating Positions
Body Crash Safety Structure	High-rigidity Ultra-high Strength Steel Integral Safety Cage Cabin, Optimized Front & Rear Energy Absorption Crumple Zones, Reinforced Side Impact Door Anti-collision Beams, Fully Compliant with Global Five-star Crash Safety Test Standards
Blade Battery Safety Protection	Exclusive BYD Blade Battery anti-thermal runaway safety structure, Complete Intelligent Full-time Thermal Management System, Passes strict nail penetration, extrusion, high-temperature burning and side pole impact safety tests
Full Vehicle Anti-theft Security System	High-grade Electronic Engine Immobilizer, Full Vehicle Anti-theft Alarm System with Interior Surveillance & Anti-towing Protection, Encrypted Remote Central Locking System
Additional Passive Safety Design	Automatic Hazard Light Activation during Emergency Hard Braking, Whiplash Optimized Active Front Headrest Design, Pedestrian-friendly Energy-absorbing Hood Structure, Automatic High-voltage Power & Fuel Cut-off Function after Collision Impact
