PRODUCT

AION i60

GAC AION i60 Full Official Technical Configuration Specifications

Original factory complete parameters for GAC AION i60 compact front-wheel-drive SUV, offered in Extended Range REEV and Pure Electric BEV powertrains with exclusive Magazine Battery 2.0 safety technology. All technical data is prepared exclusively for global overseas new energy vehicle export display.

1. Exterior Body & Overall Dimension Parameters

Specification Item	Official Standard Parameter
Vehicle Classification	Compact 5-door 5-seater Front-Wheel-Drive New Energy SUV
Overall Length	4685 mm
Overall Width	1854 mm
Overall Height	1660 mm
Wheelbase	2775 mm
Curb Weight Range	1800 kg (BEV Version) / 1725 kg (REEV Version)
Fuel Tank Capacity (REEV Only)	52 Liters
Rear Trunk Volume (Seats Upright)	416 Liters
Max Trunk Volume (Rear Seats Fully Folded)	1480 Liters
Standard Wheel Rim Size	18-inch Alloy Wheels with 225/55 R18 All-season Tires
Optional Wheel Rim Size	19-inch Two-tone Sport Alloy Wheels
Minimum Turning Radius	5.8 m

2. Powertrain, Battery & Dynamic Performance Specs

Performance Item	Pure Electric 150kW BEV FWD	Pure Electric 165kW BEV FWD	Extended Range REEV FWD
Driving Layout	Front Permanent Magnet Synchronous Motor FWD	Front Permanent Magnet Synchronous Motor FWD	Front Drive Motor + 1.5L Star Source Range Extender Generator
Peak Motor Output Power	150 kW (204 HP)	165 kW (224 HP)	180 kW (245 HP)
Motor Peak Torque	205 N·m	240 N·m	280 N·m
Range Extender Engine	Not Equipped	Not Equipped	1.5L Naturally Aspirated 4-Cylinder, Max Power 74kW, Energy Conversion Efficiency 3.73kWh/L
Battery Type	GAC Magazine Battery 2.0 LFP Lithium Iron Phosphate	GAC Magazine Battery 2.0 LFP Lithium Iron Phosphate	GAC Magazine Battery 2.0 LFP Lithium Iron Phosphate
Battery Rated Capacity	62.27 kWh / 64.62 kWh	75.26 kWh	29.165 kWh
CLTC Pure Electric Range	530 km	650 km	210 km
CLTC Comprehensive Full Range	530 km	650 km	1240 km (Full Fuel & Full Charge)
3C Ultra Fast DC Charging (30% - 80% SOC)	22 Minutes	22 Minutes	15 Minutes
AC Onboard Charging Power	6.6 kW	6.6 kW	6.6 kW
Low-Temp Battery Technology	Full Intelligent Thermal Management System with low-temperature preheating	Full Intelligent Thermal Management System with low-temperature preheating	Full Intelligent Thermal Management System with low-temperature preheating
Maximum Top Speed	155 km/h	160 km/h	170 km/h
Suspension System	Front MacPherson Independent + Rear Five-link Independent Suspension	Front MacPherson Independent + Rear Five-link Independent Suspension	Front MacPherson Independent + Rear Five-link Independent Suspension
External V2L Vehicle To Load Discharge	● Standard 6kW Outdoor Power Output Function	● Standard 6kW V2L External Power Discharge	● Standard 6kW Outdoor V2L Power Supply
Driving Mode Selection	● Eco / Normal / Sport / I-Pedal Single-pedal Mode	● Eco / Normal / Sport / I-Pedal Single-pedal Mode	● EV / Hybrid / Battery Hold / Charge Mode

3. Exterior Standard Full Configuration

Exterior Feature Name	Full Range Standard Configuration Details
Front Lighting System	Full LED Integrated Headlight Assembly, Through-type LED Daytime Running Light, Automatic Light Activation, Height Automatic Adjustment, Rain Light Induction Function
Side Rearview Mirrors	Body-colored Electric Adjustable & Auto-Folding Mirrors, Heating Function, Integrated LED Dynamic Turn Signal Lights
Rear Tailgate & Taillights	Manual Rear Liftgate (Hands-Free Electric Power Tailgate Optional for High Trim), Full LED Combination Taillights with Sequential Dynamic Light Effects
Window & Glass Functions	Heat Insulation Front Windshield, Rear Privacy Tinted Glass, Rain-Sensing Front Wipers, Rear Window Electric Defroster, Heated Windshield Washer Nozzles
Core Exterior Design	Hidden Pop-out Door Handles, Large Opening Rear Doors, Black Roof Side Rails, Full Galvanized Anti-Corrosion Body Structure, Multiple Solid & Two-tone Body Color Options

4. Interior Cabin & Comfort Configuration

Interior Item	Complete Configuration Description
Seat Upholstery Material	Base Grade: Premium Fabric Seats; Mid & High Trim: Soft Synthetic Leather / Premium Nappa Leather for Top Versions
Front Seat Adjustment	Driver 10-way Electric Adjustment with Lumbar Support & Memory Function, Passenger 6-way Electric Adjustment
Seat Comfort Functions	Front Seat Heating Standard, Front Seat Ventilation & 8-mode Massage Function Equipped on High Trims, Rear Backrest Adjustable from 100° to 137°
Air Conditioning System	Dual-Zone Intelligent Double-flow Heat Pump Air Conditioning, Independent Rear Air Outlets, PM2.5 Air Purification + Negative Ion Fresh Air Generator
Sunroof	○ Optional Panoramic Electric Tilt & Slide Sunroof with Electric Sunshade
Steering Wheel	Full Leather Wrapped Multi-function Steering Wheel, Heating Function Optional, Physical Control Buttons for Intelligent Driving
Cabin Convenience Features	Keyless Entry & One-touch Push Start, Wireless Qi Fast Phone Charging Pad, Front & Rear USB-C Charging Ports, Full-length Multi-color Ambient LED Lighting, Frameless Auto-dimming Rear View Mirror, Multiple 12V Power Interfaces
Rear Seat Layout	60/40 Split-Folding Rear Bench Seat, Rear Center Armrest with Dual Cup Holders, Ultra-spacious legroom supported by 2775mm long wheelbase

5. Intelligent Cockpit & Infotainment System

Intelligent Hardware Item	Official Technical Parameters
On-board Core Processor	High-performance Automotive Grade Intelligent Infotainment Chip

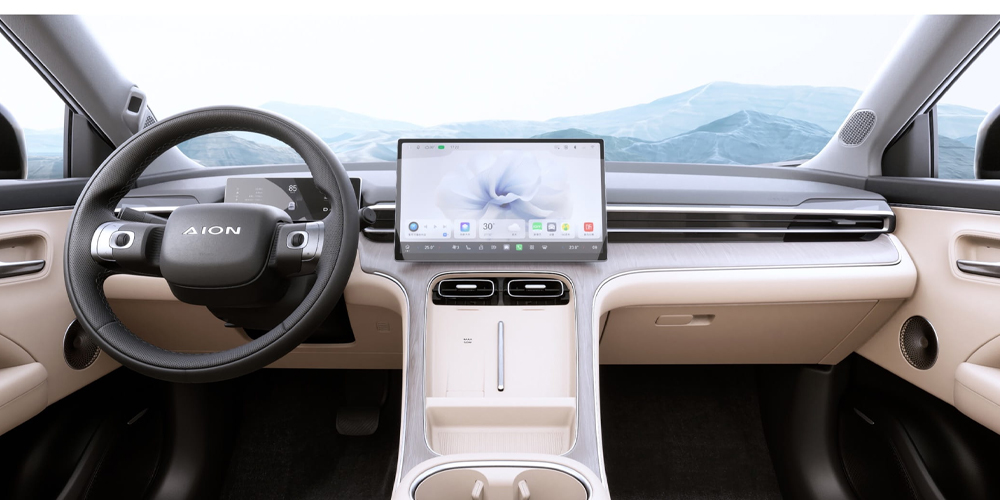

Digital Instrument Panel	10.25-inch Full LCD Customizable Digital Dashboard
Central Control Touch Screen	15.6-inch Floating High-definition Central Touch Display, Wide Viewing Angle High Brightness Screen
Head-up Display HUD	○ Optional AR Augmented Reality Head-Up Display System for premium high-end trims
AI Intelligent Voice Assistant	Dual Zone Independent Voice Recognition Control, Fast wake-up response, supports continuous multi-step voice command execution for aircon, navigation and multimedia
Mobile Phone Interconnection	Full Compatibility with Wireless Apple CarPlay, Wireless Android Auto, Bluetooth Hands-free Calling & Audio Streaming
Audio Speaker System	Standard 6-speaker Sound System, Optional Premium Hi-Fi Surround Sound Audio System for top trim levels
Smart Connected Vehicle Functions	4G Full-time On-board Network, AION Mobile App Remote Control, Full OTA Online System Upgrade, Built-in HD Driving Recorder Camera, Real-time Vehicle Status Remote Monitoring

6. GSD L2+ Intelligent Driving Assistance System

Safety Function Module	Standard Function Introduction
Full Perception Hardware	3 Millimeter Wave Radars, 7 HD Cameras, Full Set Front & Rear Ultrasonic Parking Sensors, 360° Panoramic Surround Environmental Perception
Full-speed Adaptive Cruise Control ACC	Full speed range Stop & Go function, intelligent vehicle following for highway and urban congested road scenarios
Highway NDA Navigation Driving Assist	Automatic lane change, overtaking, ramp entry and exit control for highway cruising
Lane Safety Control System	Lane Departure Warning LDW, Lane Keep Assist LKA, Emergency Lane Keeping ELK Active Intervention Correction
Automatic Emergency Braking AEB	Forward Emergency Braking, accurate identification of pedestrians, cyclists and road obstacles, Forward Collision Warning FCW
Blind Area Safety Monitoring	Blind Spot Monitoring BSM, Rear Cross Traffic Alert RCTA, Rear Approaching Vehicle Obstacle Warning Reminder
Intelligent Parking Function	HPA High Precision Automatic Parking Assist, Memory Route Parking, Remote Mobile App Parking Control, Full 540° Panoramic Surround View Camera
Driver Monitoring System	DMS Driver Fatigue Monitoring Reminder, TSR Traffic Sign Recognition & Automatic Speed Limit Identification, Full Vehicle Sentry Surveillance Mode
Chassis Brake Stability Control	ABS Anti-lock Braking, EBD Electronic Brake Force Distribution, EBA Emergency Brake Assist, ESC Electronic Stability Control, Traction Control System, Real-time TPMS Tire Pressure Monitoring, Electronic Auto Hold Parking Brake

7. Passive Crash Safety Configuration

Safety Configuration Item	Standard Safety Details
Full Airbag Layout	Complete 6-airbag Full Protection System: Front Driver & Passenger Airbags, Front Side Airbags, Full Length Front & Rear Curtain Side Airbags
Child Safety Protection	Dual Group Rear ISOFIX Child Seat Fixed Anchors, Rear Child Safety Door Locks, 3-Point Safety Belts with Pretensioners for all 5 seating positions
Body Crash Safety Structure	High-rigidity High-strength Steel Safety Cage Cabin, Optimized Front & Rear Controlled Crumple Energy Absorption Zones, Reinforced Side Impact Door Beams, Compliant with Global Five-star Crash Safety Standards
Magazine Battery 2.0 Safety Technology	720° All-round battery protection structure, air凝胶 heat insulation protection, passes strict nail penetration, extrusion, high temperature burning and side pole impact safety tests with zero thermal runaway fire risk
Vehicle Anti-theft Security System	Electronic Vehicle Immobilizer, Full Vehicle Anti-theft Alarm System, Encrypted Remote Central Locking, Anti-towing Protection Function
Additional Passive Safety Design	Automatic hazard light activation during emergency hard braking, Whiplash optimized front headrest design, Pedestrian-friendly energy-absorbing hood structure, automatic high-voltage power/fuel cut-off after collision impact
