AION Y

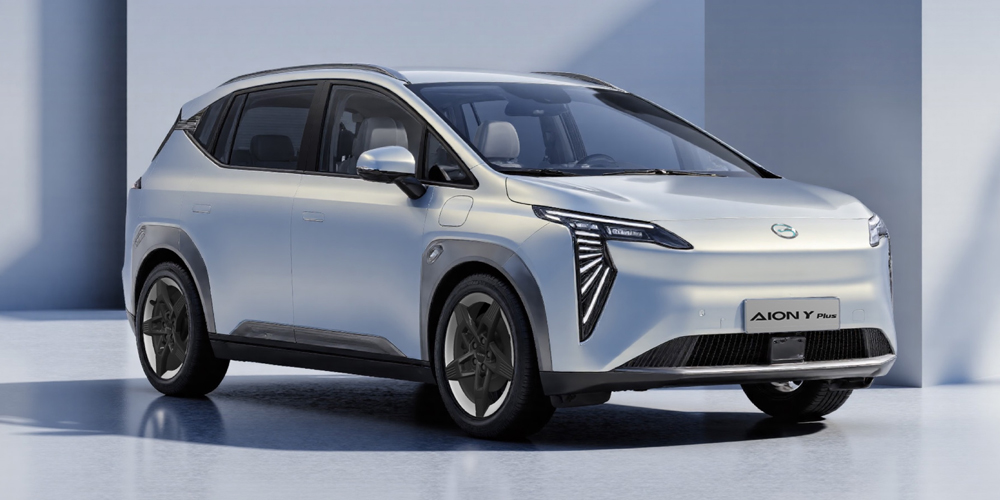

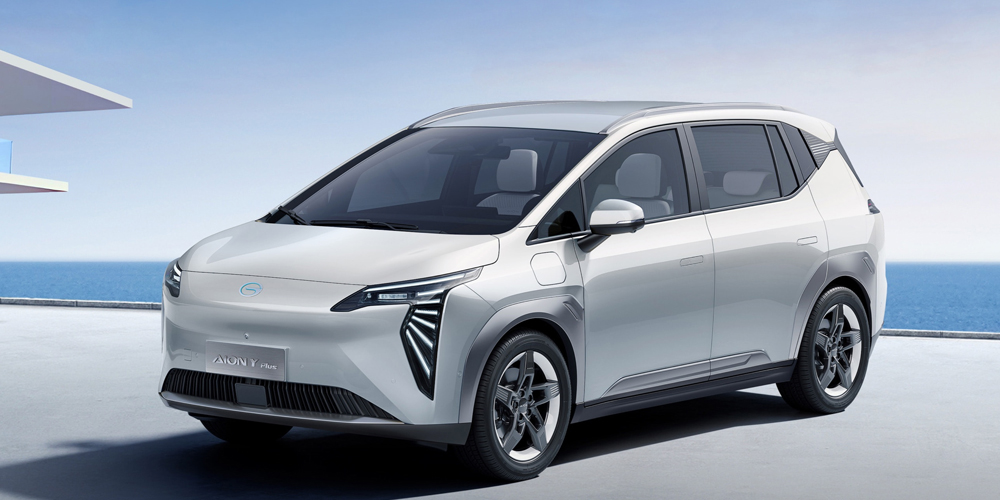

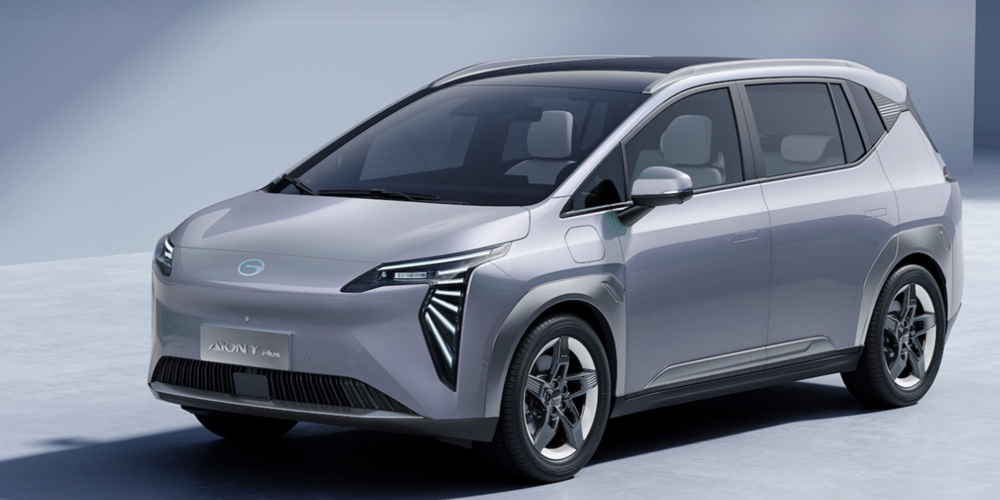

GAC AION Y Full Official Technical Configuration Specifications

Original factory complete parameters for GAC AION Y compact front-wheel-drive pure electric family SUV, equipped with industry-leading Magazine Battery safety technology. All technical data is prepared exclusively for global overseas new energy vehicle export display.

1. Exterior Body & Overall Dimension Parameters

Specification Item	Official Standard Parameter
Vehicle Classification	Compact 5-door 5-seater Front-Wheel-Drive Pure Electric SUV
Overall Length	4535 mm
Overall Width	1870 mm
Overall Height	1650 mm
Wheelbase	2750 mm
Curb Weight Range	1720 kg ~ 1790 kg
Rear Trunk Volume (Seats Upright)	405 Liters
Max Trunk Volume (Rear Seats Fully Folded)	1650 Liters
Aerodynamic Drag Coefficient	0.29 Cd Low Wind Resistance
Standard Wheel Rim Size	17-inch Alloy Wheels with 215/55 R17 All-season Tires
Optional Wheel Rim Size	18-inch Sport Two-tone Alloy Wheels
Minimum Turning Radius	5.7 m

2. Powertrain, Battery & Dynamic Performance Specs

Performance Item	100kW Standard Power Version	150kW High Power Version
Driving Layout	Front Permanent Magnet Synchronous Motor Front-Wheel Drive	Front Permanent Magnet Synchronous Motor Front-Wheel Drive
Peak Motor Output Power	100 kW (136 HP)	150 kW (204 HP)
Motor Peak Torque	176 N·m	225 N·m
Transmission Type	Single-speed Electric Reduction Gearbox	Single-speed Electric Reduction Gearbox
Battery Technology	GAC Magazine Lithium Iron Phosphate LFP Battery	GAC Magazine Lithium Iron Phosphate LFP Battery
Available Battery Capacity	59 kWh / 63.98 kWh	63.98 kWh / 76.8 kWh
CLTC Pure Electric Range	430 km / 510 km	510 km / 610 km
DC Fast Charging Speed (30% - 80% SOC)	32 Minutes	30 Minutes
AC Onboard Charging Power	6.6 kW	6.6 kW
Battery Low-temperature Protection	Intelligent Full-time Thermal Management System with low-temperature preheating	Intelligent Full-time Thermal Management System with low-temperature preheating
Maximum Top Speed	130 km/h	150 km/h
0-100km/h Acceleration Time	9.8 Seconds	7.9 Seconds
Suspension Structure	Front MacPherson Independent Suspension + Rear Torsion Beam Non-independent Suspension	Front MacPherson Independent Suspension + Rear Torsion Beam Non-independent Suspension
External V2L Vehicle To Load Discharge	● Standard 2.2kW Outdoor Power Output Function	● Standard 2.2kW V2L External Power Discharge
Driving Mode Options	● Eco / Normal / Sport / I-Pedal Single-pedal Mode	● Eco / Normal / Sport / I-Pedal Single-pedal Mode

3. Exterior Standard Full Configuration

Exterior Feature Name	Full Range Standard Configuration Details
Front Lighting System	Angel Wing Full LED Headlight Assembly, LED Daytime Running Light, Automatic Light On/Off, Height Automatic Adjustment, Rain Light Induction Function
Side Rearview Mirrors	Body-colored Electric Adjustable & Auto-Folding Mirrors, Heating Function, Integrated LED Turn Signal Indicators
Rear Tailgate & Taillights	Manual Rear Lift Gate, Star Track Full LED Combination Taillights, Dynamic Light Effect
Window & Glass Functions	Heat Insulation Front Windshield, Rear Privacy Tinted Glass, Rain-Sensing Front Wipers, Rear Window Electric Defroster, Heated Windshield Washer Nozzles

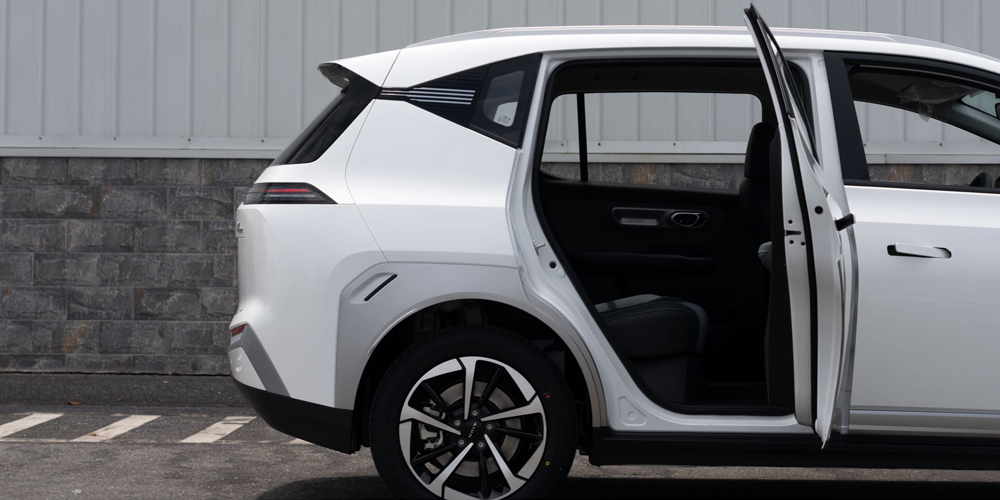

Core Exterior Design	Hidden Pop-out Door Handles, Black Roof Side Rails, Full Galvanized Anti-Corrosion Body Structure, Wide Opening Rear Door Design

4. Interior Cabin & Comfort Configuration

Interior Item	Complete Configuration Description
Seat Upholstery Material	Base Grade: Premium Fabric Seats; Mid & High Trim: Soft Synthetic Leather Upholstery
Front Seat Adjustment	Driver 6-way Electric Adjustment, Passenger Manual Adjustment for Base Version; Full 6-way electric adjustment for both front seats on high trims
Seat Core Function	Front passenger seat can fully lay flat to form a 1.8-meter double bed, front seat heating optional for high-end trims
Air Conditioning System	Dual-Zone Automatic Intelligent Air Conditioning, Independent Rear Air Outlets, PM2.5 Air Purification Filter with Negative Ion Generator
Sunroof	○ Optional Large Panoramic Electric Sunroof with Electric Sunshade
Steering Wheel	Multi-function Leather Wrapped Steering Wheel, Physical Control Buttons, Heating Function Optional
Cabin Convenience Features	Keyless Entry & One-touch Push Start, Bluetooth Smart Bluetooth Key, Wireless Qi Phone Charging Pad, Front & Rear USB-C Charging Ports, Multi-color Ambient LED Interior Lighting, Auto-dimming Rear View Mirror, Multiple 12V Power Outlets
Rear Seat Layout	60/40 Split-Folding Rear Bench Seat, Rear Center Armrest with Dual Cup Holders, Ultra-spacious rear legroom supported by 2750mm long wheelbase

5. Intelligent Cockpit & Infotainment System

Intelligent Hardware Item	Official Technical Parameters
On-board Processing Chip	High-performance Automotive Grade Intelligent Control Processor

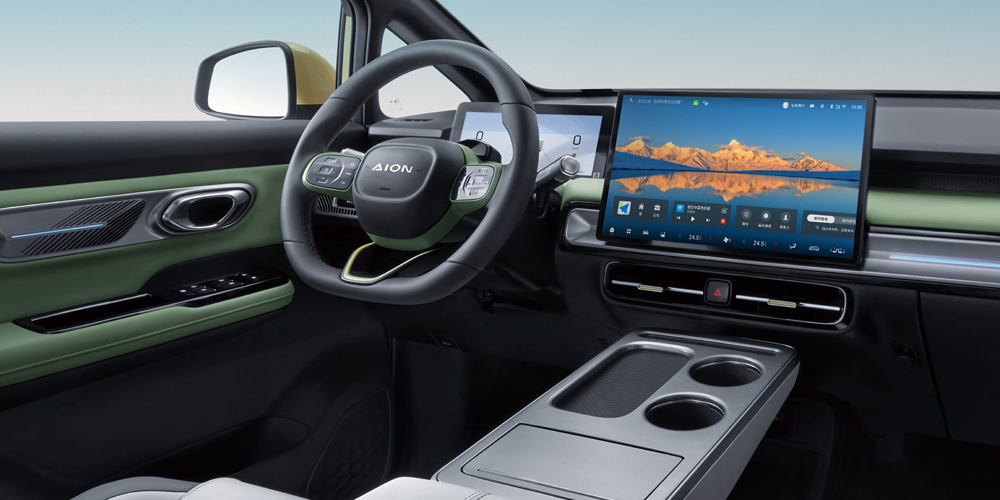

Instrument Display	10.25-inch Full LCD Digital Instrument Cluster
Central Control Touch Screen	14.6-inch Large Floating Central Touch Display, High-definition Wide View Screen
5G Intelligent Network	● Standard Built-in 5G On-board Network Module
AI Intelligent Voice Assistant	Multi-zone Independent Voice Recognition Control, Supports voice control for air conditioning, navigation, multimedia and window functions
Mobile Phone Interconnection	Full Compatibility with Wireless Apple CarPlay, Wireless Android Auto, Bluetooth Hands-free Calling & Audio Streaming
Audio Speaker System	Standard 6-speaker Sound System, Optional Tony Bongiovi High-fidelity Surround Sound Audio System for premium trims
Smart Connected Functions	GAC AION Mobile App Remote Control, Full OTA Online System Upgrade, Built-in HD Driving Recorder Camera, Remote Vehicle Status Monitoring

6. L2 Level Intelligent Driving Assistance System

Safety Function Module	Standard Function Introduction
Perception Hardware	High Definition Front Camera, Long-range Millimeter Wave Radar, Full Set Front & Rear Ultrasonic Parking Sensors, 360° Panoramic Surround View Camera
Full-speed Adaptive Cruise Control ACC	Full speed range Stop & Go function, intelligent vehicle following for highway and urban congested road conditions
Lane Safety Protection System	Lane Departure Warning LDW, Lane Keep Assist LKA, Emergency Lane Keeping Active Correction
Front Assist Automatic Emergency Braking AEB	Forward Emergency Braking, Accurate recognition of pedestrians and obstacles, Forward Collision Warning FCW
Blind Area Safety Monitoring	Blind Spot Monitoring BSM, Rear Cross Traffic Alert RCTA, Rear Approaching Vehicle Warning Reminder
Intelligent Parking Function	Super Vision Memory Parking, Automatic Intelligent Parking Assist, Remote Mobile App Parking Control Function
Driver Monitoring System	Driver Fatigue Detection Reminder, TSR Traffic Sign Recognition & Automatic Speed Limit Identification
Chassis Brake Stability Control	ABS Anti-lock Braking, EBD Electronic Brake Force Distribution, EBA Emergency Brake Assist, ESC Electronic Stability Control, Traction Control System, Real-time TPMS Tire Pressure Monitoring, Auto Hold Electronic Parking Brake

7. Passive Crash Safety Configuration

Safety Configuration Item	Standard Safety Details
Full Airbag Layout	Complete 6-airbag Standard Protection System: Front Driver & Passenger Airbags, Front Side Airbags, Full Length Front & Rear Curtain Side Airbags
Child Safety Protection	Rear Dual Group ISOFIX Child Seat Fixed Anchors, Rear Child Safety Door Locks, 3-Point Safety Belts with Pretensioners for all 5 seating positions
Body Crash Safety Structure	High-rigidity High-strength Steel Safety Cage Cabin, Optimized Front & Rear Controlled Crumple Energy Absorption Zones, Reinforced Side Impact Door Beams, Compliant with Global Five-star Crash Safety Standards
Magazine Battery Safety Technology	Exclusive Magazine Battery anti-fire safety structure, passes strict nail penetration, extrusion, high temperature burning safety tests with whole pack non-combustion performance
Vehicle Anti-theft Security System	Electronic Vehicle Immobilizer, Full Vehicle Anti-theft Alarm System, Encrypted Remote Central Locking, Anti-towing Protection Function
Additional Passive Safety Design	Automatic hazard light activation during emergency hard braking, Whiplash optimized front headrest design, Pedestrian-friendly energy-absorbing hood structure, automatic high-voltage power cut-off after collision impact
