Deepal S05

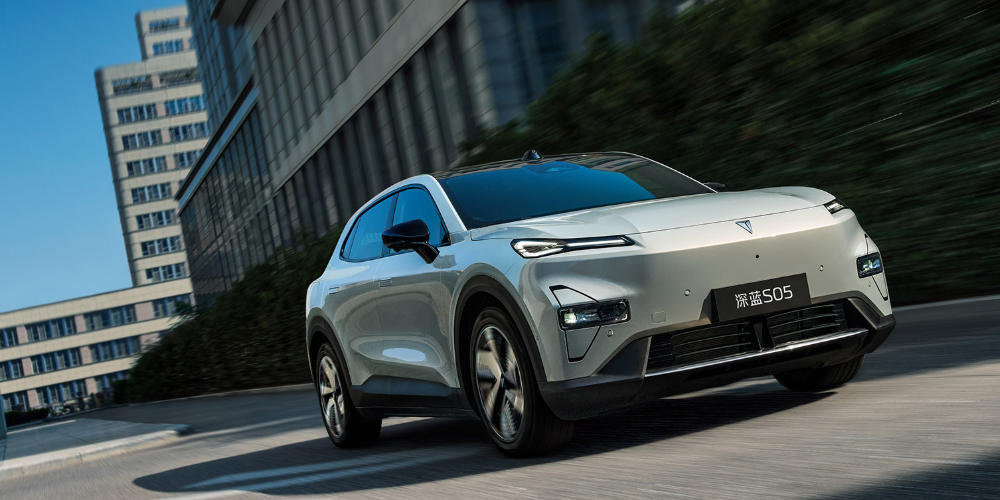

Deepal S05 Full Official Technical Configuration Specifications

Original factory complete parameters for Deepal S05 compact rear-wheel-drive new energy SUV, available in Pure Electric BEV and Extended Range REEV powertrains. All technical data is prepared exclusively for global overseas new energy vehicle export display.

1. Exterior Body & Overall Dimension Parameters

Specification Item	Official Standard Parameter
Vehicle Classification	Compact 5-door 5-seater Rear-Wheel-Drive New Energy SUV
Overall Length	4620 mm
Overall Width	1900 mm
Overall Height	1600 mm
Wheelbase	2880 mm
Front Track / Rear Track	1625 mm / 1640 mm
Curb Weight Range	1940 kg (BEV Version) / 1820 kg (REEV Version)
Fuel Tank Capacity (REEV Only)	52 Liters
Rear Trunk Volume (Seats Upright)	492 Liters
Max Trunk Volume (Rear Seats Fully Folded)	1250 Liters
Drag Coefficient	0.25 Cd Ultra Low Aerodynamic Wind Resistance
Standard Wheel Rim Size	19-inch Aerodynamic Alloy Wheels
Optional Wheel Rim Size	20-inch Sport Premium Alloy Wheels
Minimum Turning Radius	5.75 m

2. Powertrain, Battery & Dynamic Performance Specs

Performance Item	Pure Electric BEV RWD	Extended Range REEV RWD
Driving Layout	Rear Permanent Magnet Synchronous Motor Rear-Wheel Drive	Rear Permanent Magnet Motor Rear-Wheel Drive, 1.5L Range Extender Generator
Peak Motor Output Power	200 kW (272 HP)	175 kW (238 HP)
Motor Peak Torque	345 N·m	320 N·m
Range Extender Engine	Not Equipped	1.5L Naturally Aspirated Four-Cylinder Atkinson Cycle Generator
Battery Type	CATL Lithium Iron Phosphate LFP Battery	Lithium Iron Phosphate LFP Traction Battery
Battery Rated Capacity	68.8 kWh (620km CLTC) / 56.12 kWh (520km CLTC)	27.28 kWh
CLTC Pure Electric Range	520 km / 620 km	215 km
CLTC Comprehensive Full Range	520 / 620 km	Over 1234 km (Full Fuel & Full Charge)
3C Ultra Fast DC Charging Speed (30% - 80% SOC)	15 Minutes	15 Minutes
AC Onboard Charging Power	11 kW	6.6 kW
Low Temperature Battery Technology	Pulse Preheating System, Stable performance at -30℃ extreme cold environment	Pulse Preheating System for low-temperature battery protection
Maximum Top Speed	180 km/h	170 km/h
0-100km/h Acceleration Time	6.28 Seconds (520 Version) / 7.3 Seconds (620 Version)	7.8 Seconds
Suspension System	Front MacPherson Independent Suspension + Rear Five-link Independent Suspension	Front MacPherson Independent Suspension + Rear Five-link Independent Suspension
External VTOL Vehicle To Load Discharge	● Standard 3.3kW Outdoor Power Output Function	● Standard 3.3kW VTOL External Discharge

3. Exterior Standard Full Configuration

Exterior Feature Name	Full Range Standard Configuration Details

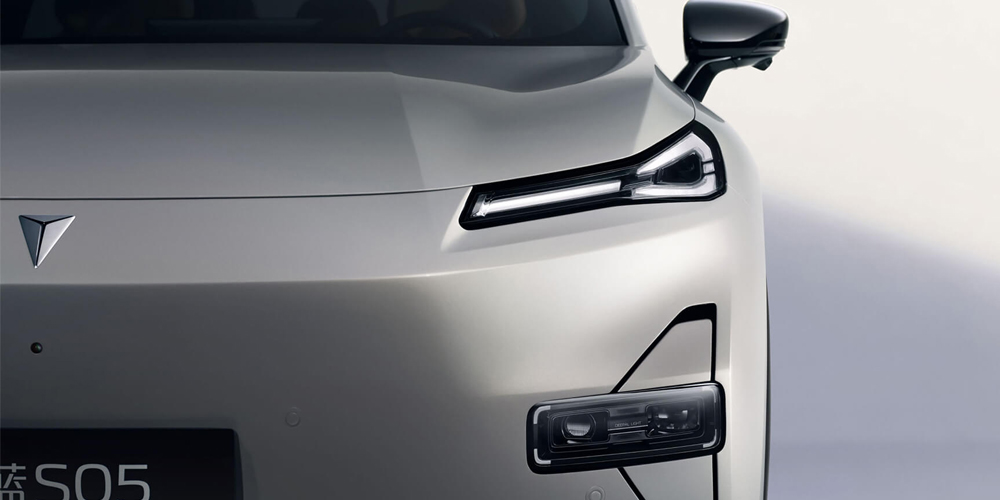

Front Lighting System	Split Full LED Headlight Assembly, Through-type LED Daytime Running Light, Automatic Light On/Off, Height Automatic Adjustment, Rain Light Induction Function
Side Rearview Mirrors	Body-colored Electric Adjustable & Auto-Folding Mirrors, Heating Function, Integrated LED Dynamic Turn Signal Lights
Rear Tailgate System	Manual Tailgate (Hands-Free Inductive Electric Power Tailgate Optional for High Trim), Full LED Taillight Combination with Dynamic Light Effects
Window & Glass Functions	Heat Insulation Front Windshield, Rear Privacy Tinted Glass, Rain-Sensing Front Wipers, Rear Window Electric Defroster, Heated Washer Nozzles

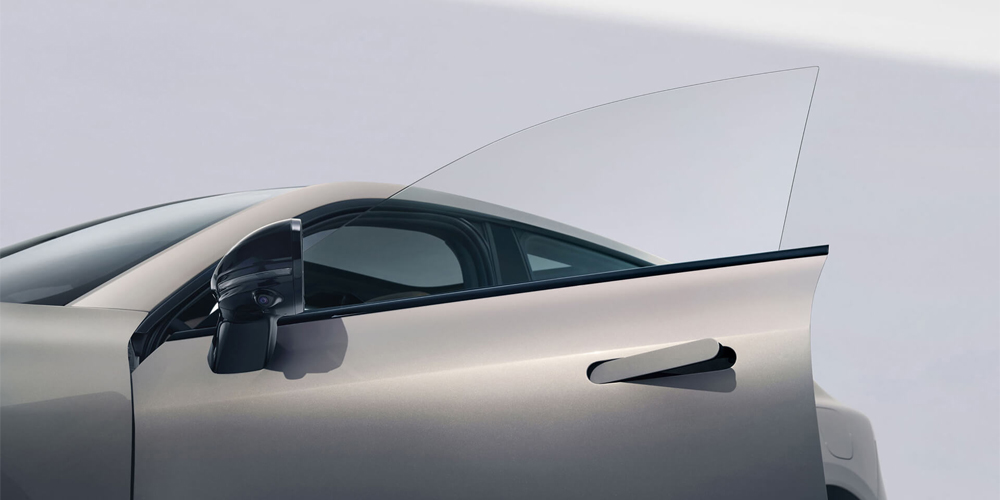

Core Exterior Design	Hidden Pop-out Door Handles, Frameless Window Trim, Aerodynamic Rear Spoiler, Black Roof Side Rails, Full Galvanized Anti-Corrosion Body Structure

4. Interior Cabin & Comfort Configuration

Interior Item	Complete Configuration Description
Seat Upholstery Material	Mid Trim: Premium Synthetic Leather; High-end Trim: Soft Nappa Genuine Leather Upholstery
Front Seat Adjustment	Driver 10-way Electric Adjustment with Lumbar Support & 2-position Memory, Passenger 6-way Electric Adjustment
Seat Comfort Functions	Front Seat Heating Standard, Front Seat Ventilation Optional, High Trim Equipped with Front Massage Function & Passenger Zero-Gravity Queen Seat
Air Conditioning System	Dual-Zone Intelligent Automatic Climate Control, Independent Rear Air Outlets, PM2.5 Air Purification + Negative Ion Fresh Air Generator

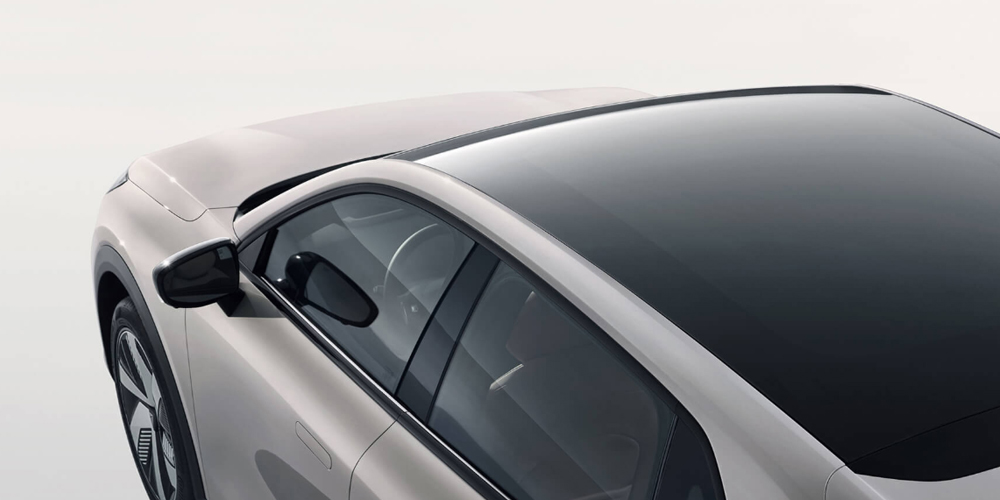

Sunroof	○ Optional Panoramic Electric Tilt & Slide Sunroof with Electric Sunshade
Steering Wheel	Genuine Leather Wrapped Multi-function Steering Wheel, Heating Function Optional, Physical Shortcut Control Buttons
Cabin Convenience Features	Keyless Entry & One-touch Push Start, Wireless Qi Fast Phone Charging Pad, Front & Rear USB-C Charging Ports, 64-color Full Cabin Ambient LED Lighting, Frameless Auto-dimming Rear View Mirror, Multiple 12V Power Interfaces
Rear Seat Layout	60/40 Split-Folding Rear Bench Seat, Rear Center Armrest with Dual Cup Holders, Extra Legroom from long 2880mm wheelbase

5. Intelligent Cockpit & Infotainment System

Intelligent Hardware Item	Official Technical Parameters
On-board Core Chip	Qualcomm Snapdragon 8155 8-core Automotive Grade High-performance Processor

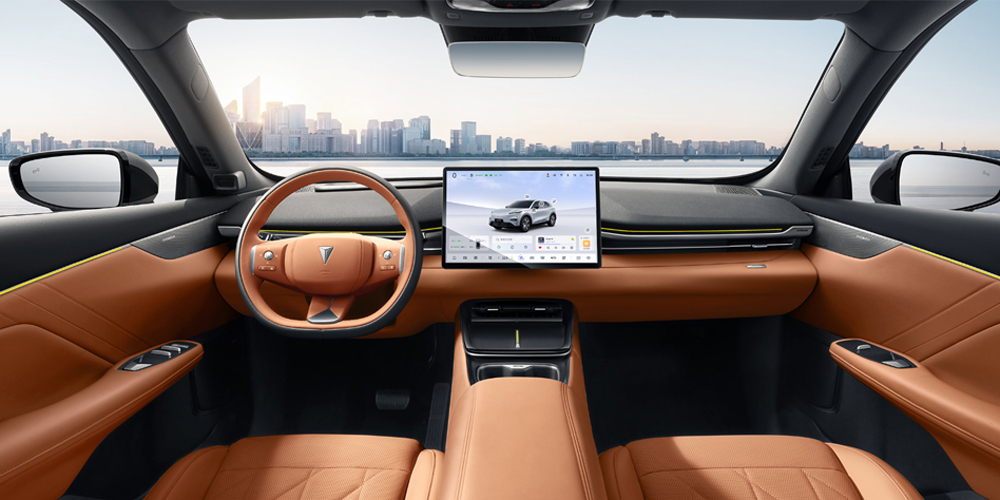

Central Control Screen	15.4-inch 2.5K Rotatable Sunflower Touch Screen, Max 1000nit High Brightness, Left/Right 30° Free Rotation
Head-up Display HUD	○ Optional 50-inch Large AR Augmented Reality Head-Up Display System
AI Intelligent Voice Assistant	Dual Zone Independent Voice Control, 0.8s Ultra-fast Wake Response, Supports 20 consecutive continuous voice commands
Mobile Phone Interconnection	Full Compatibility with Wireless Apple CarPlay, Wireless Android Auto and Huawei HiCar, Bluetooth Hands-free Calling & Audio Streaming
Premium Audio System	Standard 8-speaker Sound System, High Trim Equipped with 14-speaker Surround Sound Hi-Fi Audio System
Smart Connected Functions	4G Full-time On-board Network, Deepal Mobile App Remote Control, Full OTA Online System Upgrade, Built-in 4K Panoramic Vehicle Recorder Camera

6. L2+ Deepal AD PRO Intelligent Driving Assistance System

Safety Function Module	Standard Function Introduction
Full Perception Hardware	5 High-definition Cameras (8MP Front Main Camera), 5 Millimeter Wave Radars, 12 Ultrasonic Parking Radars, total 29 sensors for full 360° environmental perception
Full-speed Adaptive Cruise Control ACC	Full speed range Stop & Go function, intelligent vehicle following for highway and urban congested road conditions
Lane Safety Control System	Lane Departure Warning LDW, Lane Keep Assist LKA, Emergency Lane Keeping ELK Active Intervention Correction
Automatic Emergency Braking AEB	Forward & Reverse Emergency Braking, Accurate recognition of pedestrians, cyclists and obstacles, Front & Rear Cross Traffic RCTB Braking Protection
Blind Area Safety Monitoring	Blind Spot Monitoring BSM, Door Open Warning DOW, Rear Approaching Vehicle Warning Reminder
Intelligent Parking System	540° Panoramic Surround View Camera, Full Front & Rear Ultrasonic Parking Sensors, Automatic Parking Assist, 1000m Memory Route Parking & Cross-floor Parking Support
Driver Monitoring System	DMS Driver Fatigue Monitoring System, TSR Traffic Sign Recognition & Automatic Speed Limit Identification, Full Sentry Surveillance Mode
Chassis Stability Control	ABS Anti-lock Braking, EBD Electronic Brake Force Distribution, EBA Emergency Brake Assist, ESC Electronic Stability Control, Traction Control System, Real-time TPMS Tire Pressure Monitoring

7. Passive Crash Safety Configuration

Safety Configuration Item	Standard Safety Details
Full Airbag Layout	Complete 6-airbag Full Protection System: Front Driver & Passenger Airbags, Front Side Airbags, Full Length Front & Rear Curtain Side Airbags
Child Safety Protection	Rear Dual Group ISOFIX Child Seat Fixed Anchors, Rear Child Safety Door Locks, 3-Point Safety Belts with Pretensioners for all 5 seating positions
Body Crash Safety Structure	High-strength Steel-Aluminum Mixed Safety Cage Body, Integral Formed Door Anti-collision Ring, Optimized Front & Rear Energy Absorption Crumple Zones, Compliant with Global Five-star Crash Safety Standards
Traction Battery Safety Protection	CATL Golden Bell Cage Multi-layer Battery Protection Structure, Complete Intelligent Thermal Management System, Passes strict nail penetration, extrusion, open flame burning safety tests
Vehicle Anti-theft Security System	Electronic Vehicle Immobilizer, Full Vehicle Anti-theft Alarm System, Encrypted Remote Central Locking, Anti-towing Protection Function
Additional Passive Safety Design	Automatic hazard light activation during emergency hard braking, Whiplash optimized front headrest design, Pedestrian-friendly energy-absorbing hood structure, automatic power cut-off after collision impact
