Volkswagen Golf Mk9

Volkswagen Golf Mk9 Full Official Technical Configuration Specifications

Original factory complete parameters for the 9th generation Volkswagen Golf compact 5-door hatchback, covering 1.5L eTSI mild hybrid, 1.5L eHybrid plug-in hybrid and SSP platform pure electric EV powertrains. Prepared fully for global overseas export business display.

1. Exterior Body & Overall Dimension Parameters

Specification Item	Official Standard Parameter
Vehicle Classification	Compact 5-door 5-seater Urban Hatchback
Overall Length	4284 mm
Overall Width (Mirror Folded)	1789 mm
Overall Height	1468 mm
Wheelbase	2620 mm
Front Track / Rear Track	1549 mm / 1520 mm
Curb Weight Range	1285 kg (Mild Hybrid) / 1490 kg (PHEV) / 1720 kg (Pure EV)
Fuel Tank Capacity (Hybrid Versions)	50 Liters
Luggage Volume (Rear Seats Upright)	380 Liters
Max Luggage Volume (Rear Seats Fully Folded)	1237 Liters
Minimum Turning Circle Diameter	11.1 m
Standard Wheel Rim Size	16-inch Alloy Wheels with 205/55 R16 All-season Tires
Optional Wheel Rim Size	17-inch, 18-inch & 19-inch R-Line Sport Alloy Wheels
Max Braked Towing Capacity	1600 kg (Mild Hybrid) / 1500 kg (PHEV)

2. Powertrain & Dynamic Performance Specifications

Performance Item	1.5L eTSI Mild Hybrid FWD	1.5L eHybrid Plug-in Hybrid FWD	Pure Electric EV (SSP Platform) RWD
Core Power Unit	1.5L EVO2 Inline 4-Cylinder Turbo ACT Petrol + 48V Mild Hybrid System	1.5L Turbo Petrol Engine + Permanent Magnet Electric Motor	Rear-mounted Permanent Magnet Synchronous Electric Motor
Engine Displacement	1498 cc	1498 cc	Internal Combustion Engine Not Equipped
System Comprehensive Peak Power	115 kW / 156 HP	150 kW / 204 HP	210 kW / 286 HP (Standard) / 331 kW / 450 HP (Performance R Version)
System Peak Torque	250 N·m	350 N·m	420 N·m / 550 N·m (R Version)
Transmission Type	7-speed DSG Dual Clutch Automatic	6-speed DSG Dual Clutch Automatic	Single-speed Electric Automatic Reduction Gearbox
Driving Layout	Front Wheel Drive (FWD)	Front Wheel Drive (FWD)	Rear Wheel Drive (RWD), AWD Optional for High Performance Version
Battery Configuration	48V Small Lithium-ion Auxiliary Battery	18.7 kWh Lithium-ion Traction Battery	77 kWh / 85 kWh High-density Battery Pack, 800V High Voltage Platform
WLTP Pure Electric Range	N/A	100 km	Over 700 km
DC Ultra Fast Charging Speed	Not Supported	50kW DC Fast Charge (30%-80% in 30 mins)	200kW Peak Charging, 10%-80% SOC Charged within 12 Minutes
Top Maximum Speed	215 km/h	220 km/h	230 km/h
0-100km/h Acceleration Time	8.3 Seconds	7.4 Seconds	6.2s (Standard) / 4.1s (Performance R)
Suspension Structure	Front MacPherson Strut + Rear Torsion Beam Suspension; Multi-link Independent Suspension Optional	Front MacPherson Strut + Rear Multi-link Independent Suspension	Front MacPherson + Rear Five-link Independent Suspension, Adaptive DCC Dampers Optional
Driving Mode Selection	● Eco / Comfort / Sport / Individual Modes	● Hybrid / EV / Battery Hold / Charge Mode	● Eco / Comfort / Sport / Race / Regenerative Mode

3. Exterior Standard Full Configuration

Exterior Feature Name	Full Range Standard Configuration Details

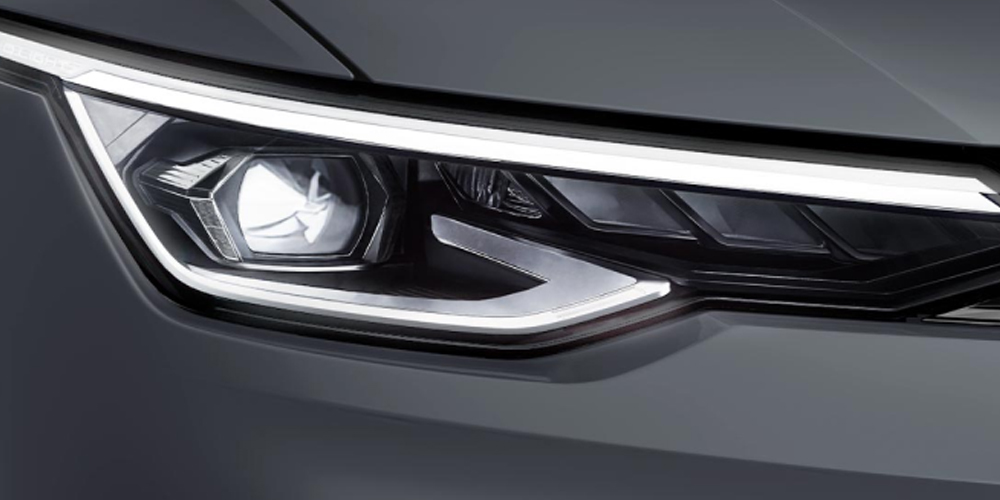

Front Lighting System	Full LED IQ.Light Headlamp Assembly, LED Daytime Running Light Strip, Automatic Light Activation, Rain Light Sensor, Height Automatic Adjustment, Matrix Intelligent LED Lights for High Trim
Side Rearview Mirrors	Body-colored Electric Adjustable & Auto-Folding Mirrors, Heating Function, Integrated LED Turn Signal Indicators
Rear Hatch & Taillights	Manual Lift Hatch (Power Electric Tailgate Optional), Full LED Rear Combination Taillights, Dynamic Sequential Turn Signals on High-end Trims
Window & Glass Functions	Heat Insulated Front Windshield, Rear Privacy Tinted Glass, Rain-Sensing Front Wipers, Heated Washer Nozzles, Rear Window Electric Defroster
Additional Exterior Accessories	Black Roof Side Rails Optional, Chrome Window Trim, R-Line Aerodynamic Body Kit Optional, Compact Spare Tire, Full Galvanized Anti-Corrosion Body Structure

4. Interior Cabin & Comfort Configuration

Interior Item	Complete Configuration Description
Seat Upholstery Material	Base Grade: Premium Fabric Seats; Mid Trim: Leatherette Synthetic Leather; Top Trim: Vienna Genuine Leather / R-Line Microfiber Suede Sport Seats
Front Seat Adjustment	Driver 10-way Electric Adjustment with Lumbar Support & 2-position Memory, Passenger 6-way Electric Adjustment on Mid & High Trims
Seat Comfort Functions	Heated Front Seats Standard, Front Seat Ventilation & Massage Function Available for Top Trim Versions
Air Conditioning System	Dual-Zone Automatic Climatronic Air Conditioning, Independent Rear Air Outlets, PM2.5 Activated Carbon Air Purification Filter
Sunroof	○ Optional Panoramic Electric Tilt & Slide Sunroof with Electric Sunshade
Steering Wheel	Leather Wrapped Multi-function Steering Wheel, Heating Function Standard on Mid Trims, Shift Paddle Control for Automatic Transmission
In-car Convenience Features	KESSY Keyless Entry & Push Button Start, Wireless Qi Phone Charging Pad, Front & Rear USB-C Fast Charging Ports, Multi-color Ambient LED Interior Lighting, Frameless Auto-dimming Rearview Mirror, Cabin & Trunk 12V Power Outlets
Rear Seat Layout	60/40 Split-Folding Rear Bench Seat, Rear Center Armrest with Dual Cup Holders

5. Intelligent Cockpit & Infotainment System

Intelligent Hardware Item	Official Technical Parameters
On-board Processing Chip	Latest MIB4 Infotainment System with High-performance Automotive Grade 8-core Processor
Digital Instrument Cluster	10.25-inch Volkswagen Digital Cockpit Pro Full LCD Customizable Dashboard
Central Infotainment Screen	Standard 12.9-inch Floating Touch Display, Discover Pro Max Navigation System Equipped on High Trim
Head-up Display HUD	○ Optional AR Augmented Reality Head-Up Display System for Top Trim Models
Intelligent Voice Control	IDA Intelligent Voice Assistant, Multi-zone Independent Voice Recognition, Fast Response for Vehicle Function Control
Mobile Phone Connectivity	Wireless Apple CarPlay & Wireless Android Auto Full Compatibility, Bluetooth Hands-free Audio & Calling
Audio Speaker System	Standard 6-Speaker Sound System, Harman Kardon Premium Surround Sound Audio System Optional for High-end Trims
Connected Vehicle Services	5G On-board Network, myVW Mobile App Remote Control, OTA Online System Upgrade, Emergency E-Call Service, Real-time Vehicle Status Remote Monitoring

6. L2+ IQ.DRIVE ADAS Active Driving Safety System

Safety Function Module	Standard Function Introduction
Perception Hardware	High Definition Surround Cameras, Long-range Millimeter Wave Radar, Full Set Front & Rear Ultrasonic Parking Sensors, 360° Surround Environmental Perception
Travel Assist Full-speed Cruise	Adaptive Cruise Control with Stop & Go Function, Combined Lane Centering Assist for Highway Congestion Driving
Lane Safety Assistance	Lane Assist Lane Keeping System, Lane Departure Warning, Emergency Active Lane Intervention Correction
Front Assist Automatic Emergency Braking	Forward AEB Emergency Braking, Pedestrian & Cyclist Detection Protection, Forward Collision Warning System
Blind Spot & Rear Safety	Side Assist Blind Spot Monitoring System, Rear Cross Traffic Alert RCTA, Rear Approaching Vehicle Obstacle Warning
Parking Assistance System	360° Area View Panoramic Surround Camera, Dynamic Guideline Rear View Camera, Front & Rear Park Distance Control Sensors
Driver Monitoring & Recognition	DMS Driver Fatigue Detection System, TSR Traffic Sign Recognition & Automatic Speed Limit Recognition
Chassis Brake Stability Control	ABS Anti-lock Braking, EBD Electronic Brake Force Distribution, EBA Brake Assist, ESC Electronic Stability Control, Traction Control, TPMS Real-time Tire Pressure Monitoring, Multi-Collision Automatic Secondary Brake System

7. Passive Crash Safety Configuration

Safety Configuration Item	Standard Safety Details
Full Airbag Layout	Complete 6-airbag Standard Layout: Front Driver & Passenger Airbags, Front Side Airbags, Full Length Front & Rear Curtain Airbags, Front Center Inter-airbag
Child Safety Protection	Rear Outer ISOFIX Child Seat Mounting Anchors, Rear Child Safety Door Locks, 3-Point Safety Belts for All 5 Seating Positions with Front Pretensioners
Body Crash Safety Structure	Rigid High-strength Safety Cage Cabin, Front & Rear Controlled Crumple Energy Absorption Zones, Reinforced Side Impact Door Beams, Comply with Euro NCAP Five-star Crash Safety Standards
Battery Safety (EV & PHEV Versions)	Multi-layer Sealed Battery Protection Shell, Complete Thermal Management System, Pass Nail Penetration, Extrusion and Open Flame Burning Safety Tests
Anti-Theft Security System	Electronic Engine Immobilizer, Full Vehicle Anti-theft Alarm with Interior Surveillance & Towing Protection, Remote Central Encrypted Locking System
Additional Passive Safety Design	Emergency Automatic Hazard Light Activation during Hard Braking, Whiplash Optimized Front Seat Backrest Design, Pedestrian Friendly Bonnet Crush Safety Structure, Fuel/Electric Power Automatic Cut-off after Collision Impact
